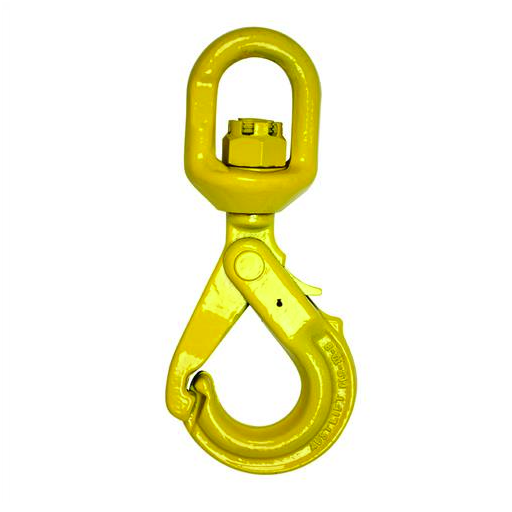

G80 Grip Self Locking Hook – Swivel Type
Austlift GLS Type Swivel Self-Locking Hooks are designed with a plain bush bearing swivel to allow the hook to reduce twist under load. They also have a unique design to prevent side loading of the latch.
- Marked with Chain size, product ID, grade with manufacture quality mark and Austlift branded.
- Manufactured from G80 alloy steel with a safety factor of 4 to 1.
- Test Certificates available upon request.
- Conforms to AS3776.
- Spare Trigger Kits and Swivel Bow head are available.

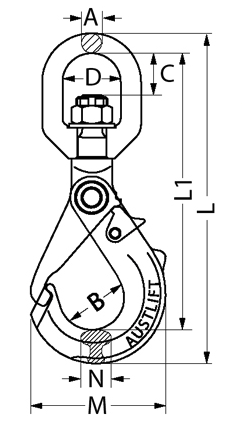

| CODE | CHAIN SIZE | WLL | Wt. | DIMENSIONS (mm) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | tonne | kg | A | B | C | D | N | M | L | L1 | |
| 102708 | 8 | 2 | 0.97 | 12.5 | 40 | 26 | 35.5 | 18 | 83 | 216 | 182 |
| 102710 | 10 | 3.2 | 1.83 | 15 | 50 | 33 | 42 | 22.5 | 101 | 254 | 213 |
| 102713 | 13 | 5.3 | 3.3 | 18 | 60 | 39 | 50 | 29 | 121 | 300 | 252 |
