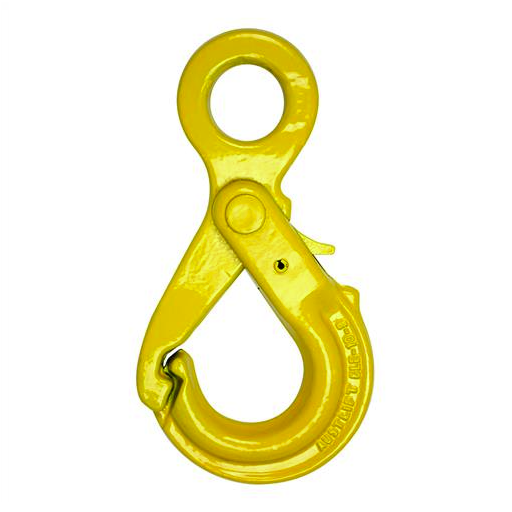

G80 Grip Self Locking Hook – Eye Type
Austlift LE Type Eye Self-Locking Hook allows the hook to remain open until the load is engaged. The hook will not open until the trigger at the back is pressed. The eye style allows easy connection to Chain Connectors, Shackles and Wire Rope Slings.
- Marked with Chain size, product ID, grade with manufacture quality mark and Austlift branded.
- Manufactured from G80 alloy steel with a safety factor of 4 to 1.
- Test Certificates available upon request.
- Conforms to AS3776.
- Spare Trigger Kits are available.

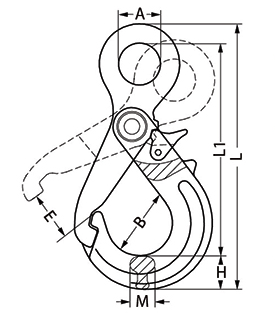

| CODE | CHAIN SIZE | WLL | Wt. | DIMENSIONS (mm) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | tonne | kg | A | B | E | H | L | M | L1 | |
| 102608 | 8 | 2 | 0.75 | 25 | 40 | 34 | 21.5 | 163 | 18 | 131 |
| 102610 | 10 | 3.2 | 1.2 | 32 | 50 | 42 | 26.5 | 201.5 | 22.5 | 161 |
| 102613 | 13 | 5.3 | 2 | 40 | 60 | 50 | 31 | 243.5 | 29 | 195 |
| 102616 | 16 | 8 | 4.1 | 50 | 70 | 60 | 39.5 | 298 | 35 | 238 |
