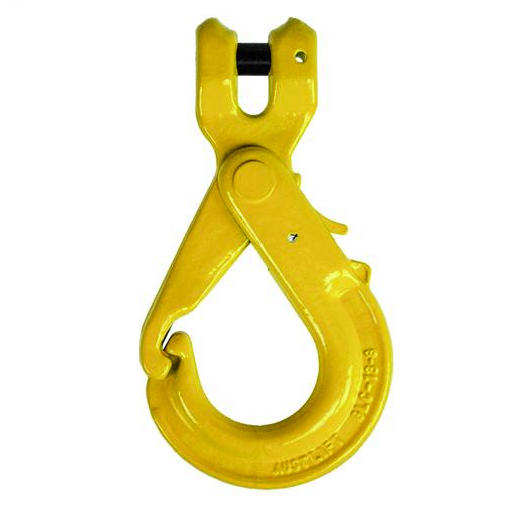

G80 Grip Self Locking Hook – Clevis Type
Austlift GC Type Clevis Grip-Locking Hook allows the hook to remain open until the load is engaged. The hook will not open until the Trigger at the back is pressed. Clevis style allows easy connection to the Chain and also has a unique design to prevent side loading of the latch.
- Marked with Chain size, product ID, grade with manufacture quality mark and Austlift branded
- Manufactured from G80 alloy steel with a safety factor of 4 to 1.
- Test Certificates available upon request.
- Conforms to AS3776.
- Spare Trigger Kits and Load Pins are available.

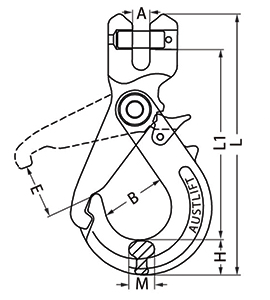

| CODE | CHAIN SIZE | WLL | Wt. | DIMENSIONS (mm) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | tonne | kg | A | H | E | L | B | M | L1 | |
| 102508 | 8 | 2 | 0.6 | 9.5 | 21.5 | 34 | 150 | 40 | 18 | 111 |
| 102510 | 10 | 3.2 | 1.1 | 12 | 26.2 | 44 | 189 | 50 | 22.5 | 139 |
| 102513 | 13 | 5.3 | 2 | 15 | 31 | 54 | 229 | 60 | 29 | 168 |
| 102516 | 16 | 8 | 4.2 | 18.5 | 39.5 | 63 | 299 | 72 | 35 | 238 |
