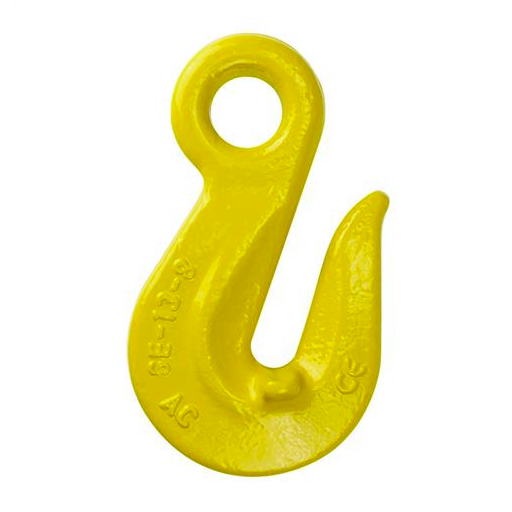

G80 Grab Hook – Eye Type
GE Type Eye grab hook provides the flexibility to shorten Chain Sling and can be used for back-hooking. Austlift Grab Hooks come with supporting lugs to allow no reduction of the working load limit. The eye is designed for easy connection of Chain Connector.
- Marked with Chain size, product ID, grade with manufacture quality mark and Austlift branded
- Made from G80 alloy steel with safety factor of 4 to 1
- Test Certificates available upon request.
- Conforms to AS3776.

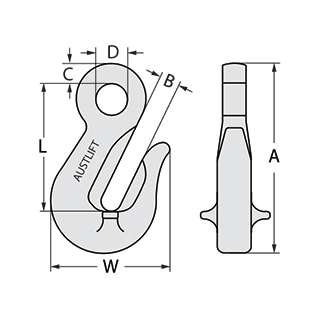

| CODE | CHAIN SIZE | WLL | Wt. | DIMENSIONS (mm) | |||||
|---|---|---|---|---|---|---|---|---|---|
| mm | tonne | kg | A | B | C | D | W | L | |
| 102006 | 6 | 1.12 | 0.25 | 75 | 8 | 8 | 13 | 45 | 50 |
| 102008 | 7/8 | 2 | 0.4 | 106 | 11 | 9.5 | 16 | 63 | 73 |
| 102010 | 10 | 3.15 | 0.6 | 126 | 13 | 12 | 20 | 79 | 84.5 |
| 102013 | 13 | 5.3 | 1.2 | 156 | 16 | 15 | 25 | 100 | 104 |
| 102016 | 16 | 8 | 2.7 | 193 | 20 | 19 | 28.5 | 123 | 130 |
| 102020 | 18/20 | 12.5 | 4.3 | 227 | 25 | 23 | 36 | 152 | 152 |
| 102022 | 22 | 15 | 6.4 | 270 | 26 | 27 | 46 | 174 | 186 |
| 102026 | 26 | 21.2 | 10.7 | 305 | 31.5 | 34 | 49 | 181 | 196 |
| 102032 | 32 | 31.5 | 20.65 | 373 | 41 | 40 | 65 | 229 | 249 |
