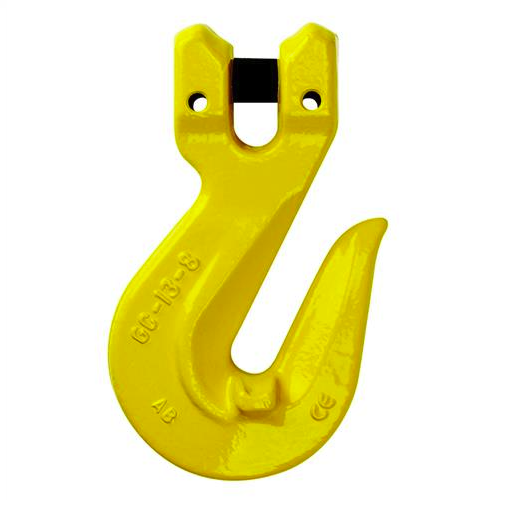

G80 Grab Hook – Clevis Type
GC Type Clevis grab hook provides the flexibility to shorten Chain Slings and can be used for back-hooking.
Grab Hooks come with supporting lugs to allow no reduction of the working load limit. The Clevis is designed for easy connection of Chain.
- Marked with Chain size, product ID, grade with manufacture quality mark and Austlift branded.
- Made from G80 alloy steel with safety factor of 4 to 1
- Test Certificates available upon request.
- Conforms to AS3776.

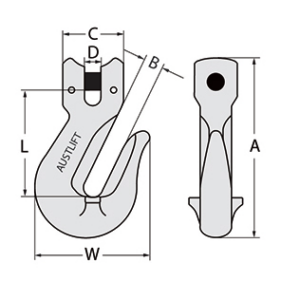

| CODE | CHAIN SIZE | WLL | Wt. | DIMENSIONS (mm) | |||||
|---|---|---|---|---|---|---|---|---|---|
| mm | tonne | kg | A | B | C | D | W | L | |
| 101906 | 6 | 1.12 | 0.23 | 78 | 8 | 32 | 7.5 | 41 | 46 |
| 101908 | 7/8 | 2 | 0.32 | 108 | 11 | 36 | 9 | 57 | 66 |
| 101910 | 10 | 3.2 | 0.73 | 127 | 13 | 46 | 12 | 70 | 74 |
| 101913 | 13 | 5.3 | 1.5 | 163 | 16 | 59 | 15 | 89 | 97 |
| 101916 | 16 | 8 | 2.8 | 204 | 20 | 70 | 17.5 | 109 | 124 |
| 101920 | 18/20 | 12.5 | 5 | 243 | 23 | 80 | 23 | 130 | 150 |
| 101922 | 22 | 15 | 6.3 | 280 | 26 | 98 | 25.5 | 151 | 170 |
| 101926 | 26 | 21.2 | 14.5 | 309 | 30 | 110 | 30 | 175 | 168 |
