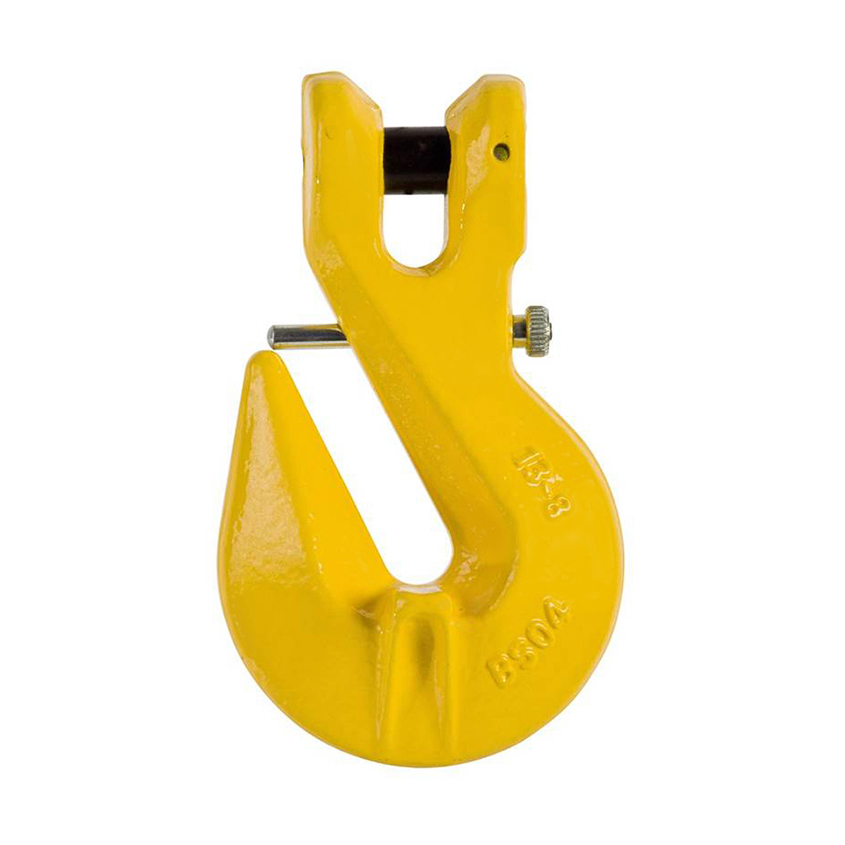

G80 Grab Hook – Clevis Safety Pin
Except for shortening chain slings, GCS type Clevis grab hook provides extra secure function by adding secure pins, which prevent chains from disengaging from the hook
- Marked with sizes, batch number, grade, and Austlift branded with manufacture quality mark
- Batch tested, test certificates available upon request
| CODE | CHAIN SIZE | WLL | Wt. | DIMENSIONS (mm) | |||||
|---|---|---|---|---|---|---|---|---|---|
| mm | tonne | kg | A | B | E | M | L | L1 | |
| 103206 | 6 | 1.12 | 0.205 | 8 | 32 | 8 | 43.5 | 75 | 40 |
| 103208 | 8 | 2 | 0.33 | 9.5 | 35 | 11 | 50 | 89 | 43 |
| 103210 | 10 | 3.2 | 0.88 | 12.5 | 45.5 | 13 | 70.5 | 126.5 | 74 |
| 103213 | 13 | 5.3 | 1.85 | 15 | 53 | 16.5 | 96 | 163.5 | 92 |
| 103216 | 16 | 8 | 3.24 | 18.5 | 69.5 | 19 | 112.5 | 183.5 | 98 |
