G80 Foundry Hook – Eye Type

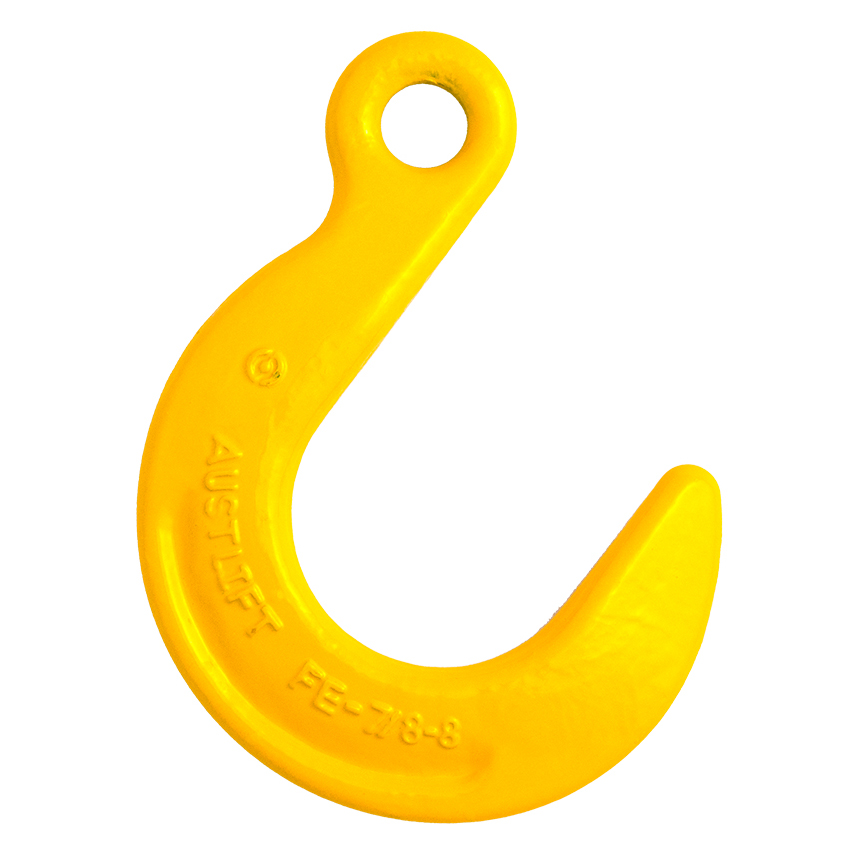

FE Type Eye Foundry Hooks are a special purpose hook with large mouth opening,

  • Suitable for lifting pipes and foundry applications.
  • Marked with Chain size, product ID, grade with manufacture quality mark
  • Manufactured from G80 alloy steel with a safety factor of 4 to 1
  • Test Certificates available upon request
  • Conforms to AS3776

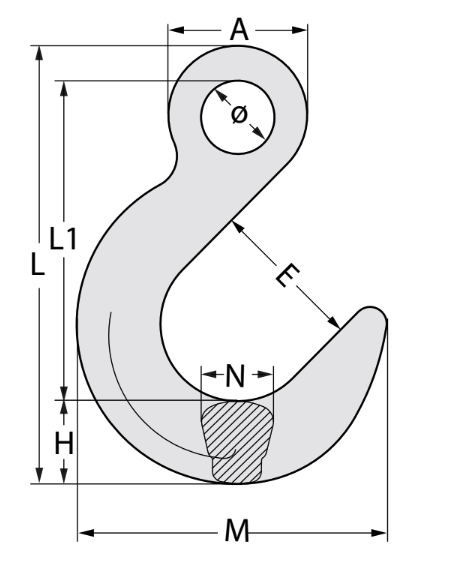

CODE Type WLL Wt. DIMENSIONS (mm)
tonne kg A E Ø H M N L L1
107108 7/8 2 1.09 39 63.5 18 31 120 25.4 163 121
