G80 Foundry Hook – Clevis Type
FE Type Clevis Foundry Hooks are a special purpose hook with large mouth opening,
The clevis allows easy connection to the chain.
- Suitable for lifting pipes and foundry applications.
- Marked with Chain size, product ID, grade with manufacture quality mark
- Manufactured from G80 alloy steel with a safety factor of 4 to 1
- Test Certificates available upon request
- Conforms to AS3776

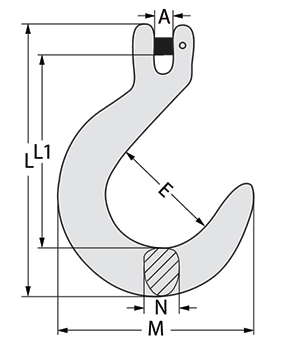

| CODE | Type | WLL | Wt. | DIMENSIONS (mm) | |||||
|---|---|---|---|---|---|---|---|---|---|
| tonne | kg | A | E | M | N | L | L1 | ||
| 107008 | 7/8 | 2 | 1.1 | 9.5 | 63.4 | 128 | 18 | 161 | 110 |
| 107010 | 10 | 3.2 | 2.5 | 13 | 76.9 | 156 | 32 | 199 | 137 |
