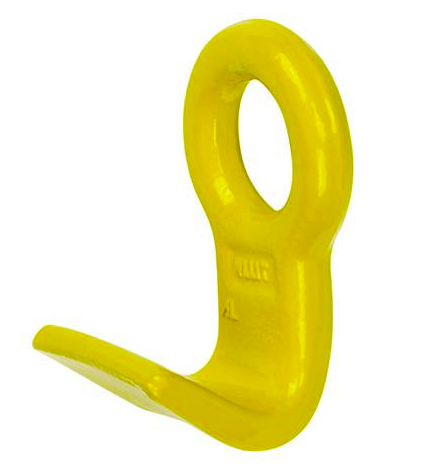

G80 Drum Hook – Eye Type

Austlift GLS Type Swivel Self-Locking Hooks are designed with a plain bush bearing swivel to allow the hook to reduce twist under load. They also have a unique design to prevent side loading of the latch.

  • Marked with Chain size, product ID, grade with manufacture quality mark and Austlift branded.
  • Manufactured from G80 alloy steel with a safety factor of 4 to 1.
  • Test Certificates available upon request.
  • Conforms to AS3776.
  • Spare Trigger Kits and Swivel Bow head are available.

G80 Drum Hook dimensions

CODE WLL Wt. DIMENSIONS (mm)
tonne kg C C1 D W W1
104401 1t/pair 0.812 109 118.5 38 59 60
