G80 Container Hook
Eye Type Container Hooks are a special purpose hook suitable for lifting containers by connection to twist lock pocket.
- The large diameter eye allows most hook sizes to fit.
- There is left and right hand configurations and a straight configuration available.
- Marked with Chain size, product ID, grade
- Manufacture quality mark
- Manufactured from G80 alloy steel with a safety factor of 4 to 1
- Conforms to AS 3776, Test Certificates available upon request.
| CODE | Type | CHAIN SIZE (mm) | WLL | Wt. | |
|---|---|---|---|---|---|
| G80 | G100 | Tonne | kg | ||
| 104410 | Straight | 20 | 19 | 12.5 | 4 |
| 107010 | LH 45° | 20 | 19 | 12.5 | 4 |
| 107008 | RH 45° | 20 | 19 | 12.5 | 4 |

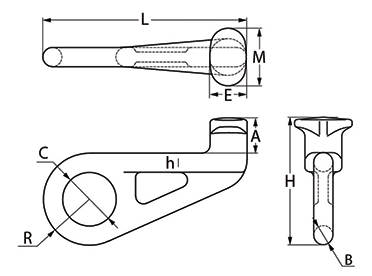

| DIMENSIONS (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | E | R | M | L | H | h |
| 46 | 25 | 70 | 48 | 60 | 75 | 265 | 166 | 25 |
