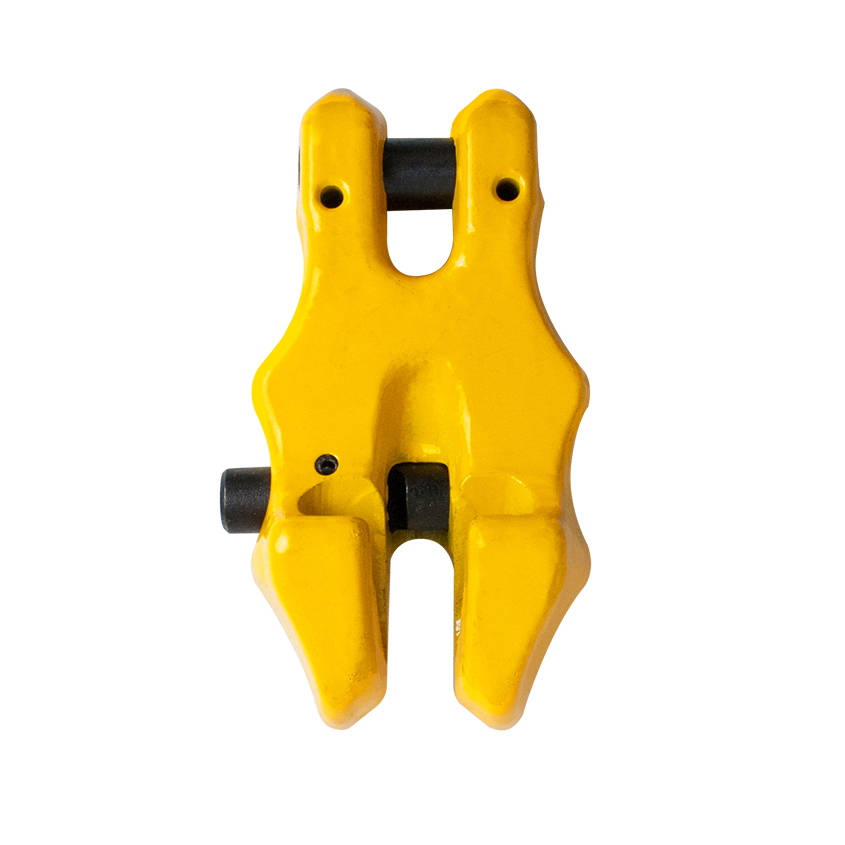

G80 Clevis Clutch with Safety Pin
Austlift CC type lockable clutches have the advantage of shortening a chain sling without loss of the working load limit of the sling. The clevis allows easy connection to chain. Not recommended for use as bottom fitting of sling for back-hooking and reeving applications.
- Marked with sizes, batch number, grade and Austlift branded with manufacture quality mark
- Batch tested, test certificates available upon request.
| Code | Size | WLL | Wt | Dimensions (mm) | |||||||
| mm | Tonne | kg | A |
B | C | D | M | N | P | L | |
| 102108S | 7/8 | 2 | 0.41 | 50 | 9.5 | 33 | 9.5 | 33 | 23 | 9.2 | 92 |
| 102110S | 10 | 3.2 | 0.75 | 60 | 12.5 | 43 | 12.5 | 40 | 26 | 13.3 | 115 |
| 102113S | 13 | 5.3 | 1.67 | 79 | 15 | 55 | 12 | 54 | 34 | 16.3 | 149 |
