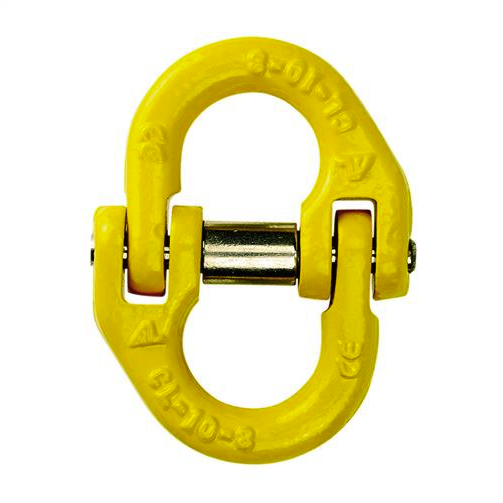

G80 Chain Connectors
CL Type Connecting Links are commonly used to connect Head Rings, Chain, Hooks and other lifting components for Chain Slings and a wide variety of other uses.
- Marked with Chain size, grade and Austlift branded with manufacture quality mark.
- Made from G80 alloy steel with a safety factor of 4 to 1.
- Test Certificates available upon request.
- Conforms to AS3776.

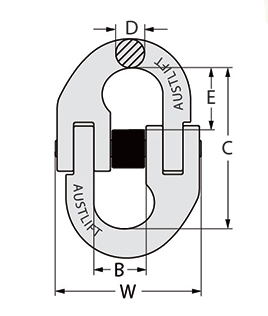

| CODE | CHAIN SIZE | WLL | Wt. | DIMENSIONS (mm) | ||||
|---|---|---|---|---|---|---|---|---|
| mm | tonne | kg | B | C | D | E | W | |
| 101806 | 6 | 1.12 | 0.08 | 15 | 42 | 7 | 18 | 43 |
| 101808 | 7, 8 | 2 | 0.146 | 18 | 60.5 | 8.5 | 23.5 | 55 |
| 101810 | 10 | 3.15 | 0.3 | 25 | 68 | 11.5 | 27 | 69 |
| 101813 | 13 | 5.3 | 0.7 | 29 | 87 | 15 | 32 | 83 |
| 101820 | 18, 20 | 12.5 | 2.1 | 41 | 121.5 | 24 | 52.5 | 117 |
| 101822 | 22 | 15 | 3.2 | 48 | 141.5 | 26 | 62 | 143 |
| 101826 | 26 | 21.2 | 4.5 | 57.5 | 158 | 30 | 64 | 163 |
| 101832 | 32 | 31.5 | 9 | 67 | 205 | 37 | 86 | 199 |
