G70 Slip Hook

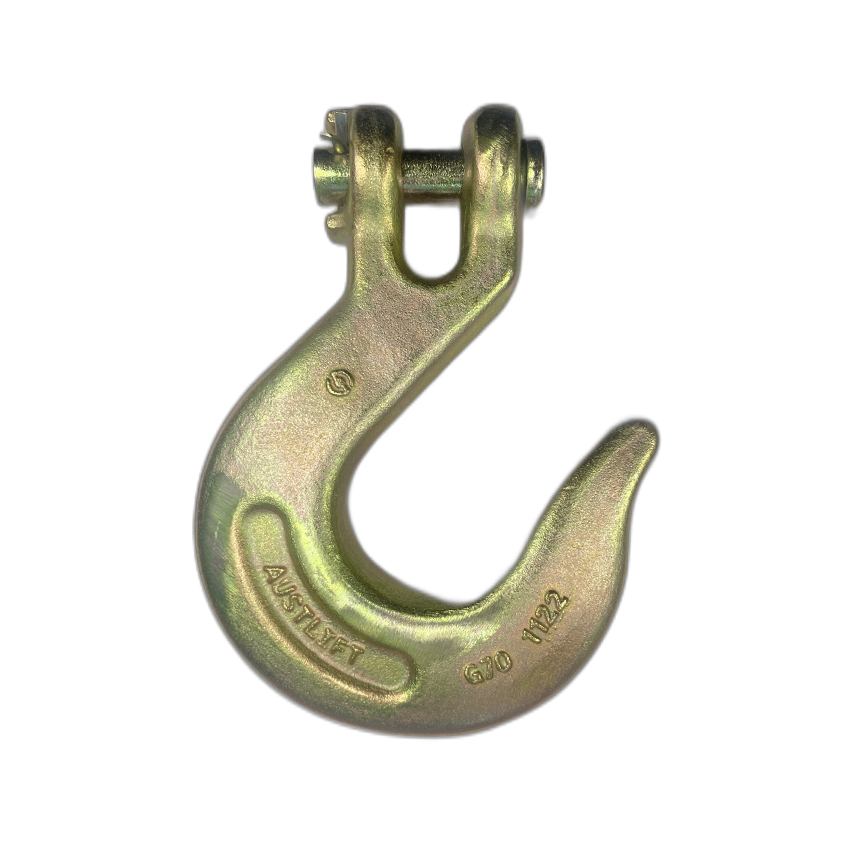

A Grade 70 Clevis Slip Hook

Loadmax Clevis Slip Hooks combined with Grade 70 Chain are an effective way to restrain heavy loads for transport operations with the benefit of a hook style fitting for all sorts of lashing applications.

  • Sizes available from 6 to 13mm.
  • Manufactured from dropped forged steel quenched and tempered and gold zinc plated.
  • Marked with Chain size, lashing capacity, grade, batch numbered and branded Loadmax for traceability
  • Comply with AS 4344, Batch Test Certificate available upon request.

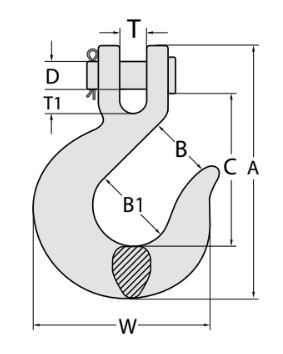

slip hook dimensions diagram

Code Size L.C Wt. Dimensions
A B B1 C T T1 W
mm kg kg mm mm mm mm mm mm mm
201306 6 2000 0.22 102 24 30 66 7.8 11 70
201308 8 3800 0.33 114 27 32 74 9.9 13 75

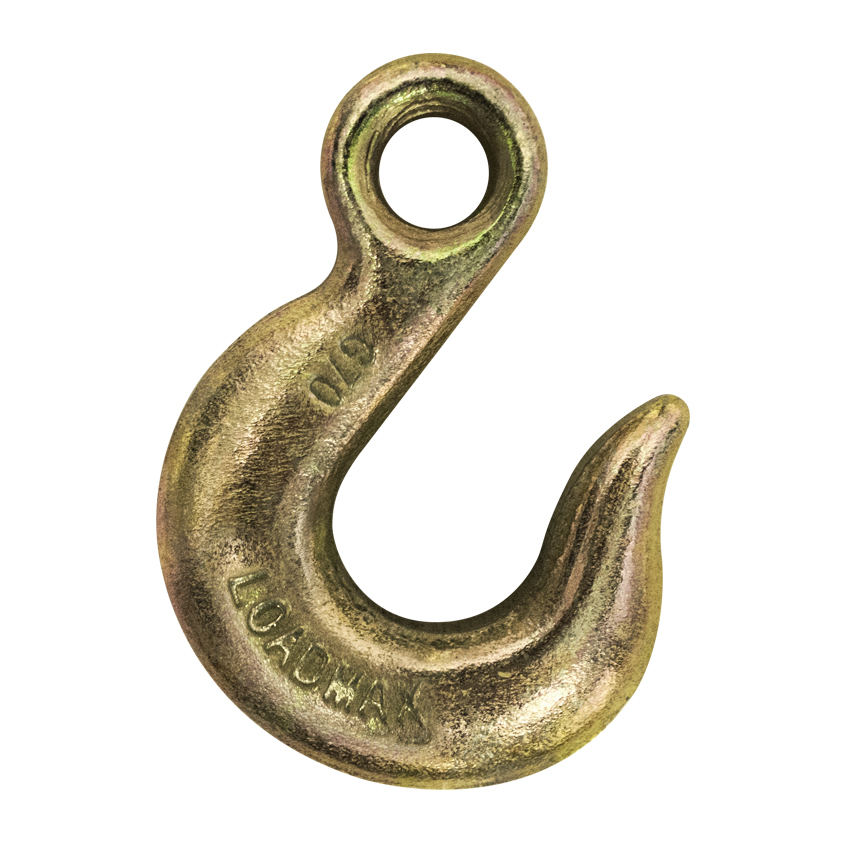

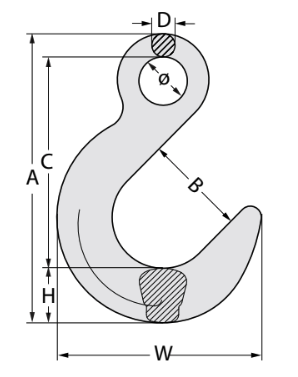

201408 8 3800 201308 with Eye type slip hook
201310 10 6000 0.5 132 33 38 85 12 15.5 88
210313 13 9000 1.23 166 43 49 103 16 19.6 123
