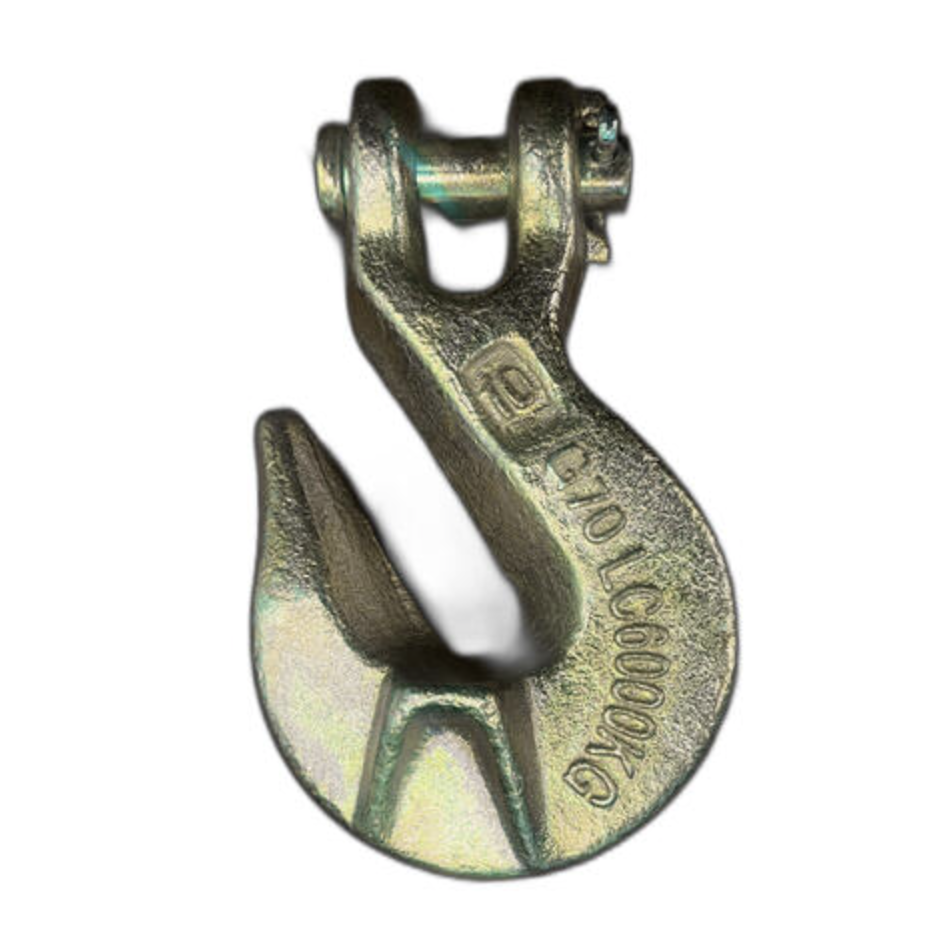

G70 Grab Hook
Clevis Winged Grab Hooks combined with Grade 70 Chain are an effective way to restrain heavy loads for transport operations with the benefit of a cradle built into the hook to achieve full lashing capacity.
- Sizes available from 6mm to 13mm.
- Manufactured from dropped forged steel quenched and tempered and gold zinc plated.
- Marked with Chain size. lashing capacity, grade. batch numbered and branded Loadmax for traceability
- Comply with AS 4344. Batch Test Certificate available upon request.
| CODE | SIZE (mm) | LC (T) | Wt. (kg) | DIMENSIONS (mm) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | T | ||||
| 201006 | 6 | 2.3 | 0.23 | 77 | 8.5 | 21 | 8.5 | 18.5 | 24.5 | 10 |
| 201008 | 7-8 | 3.8 | 0.35 | 95 | 12 | 23 | 11.5 | 24.5 | 31.5 | 11.5 |
| 201010 | 10 | 6.0 | 0.57 | 112 | 13 | 28 | 12.5 | 29 | 40 | 13 |
| 201013 | 13 | 9.0 | 0.92 | 136 | 16 | 32 | 16.8 | 44 | 43 | 16 |
