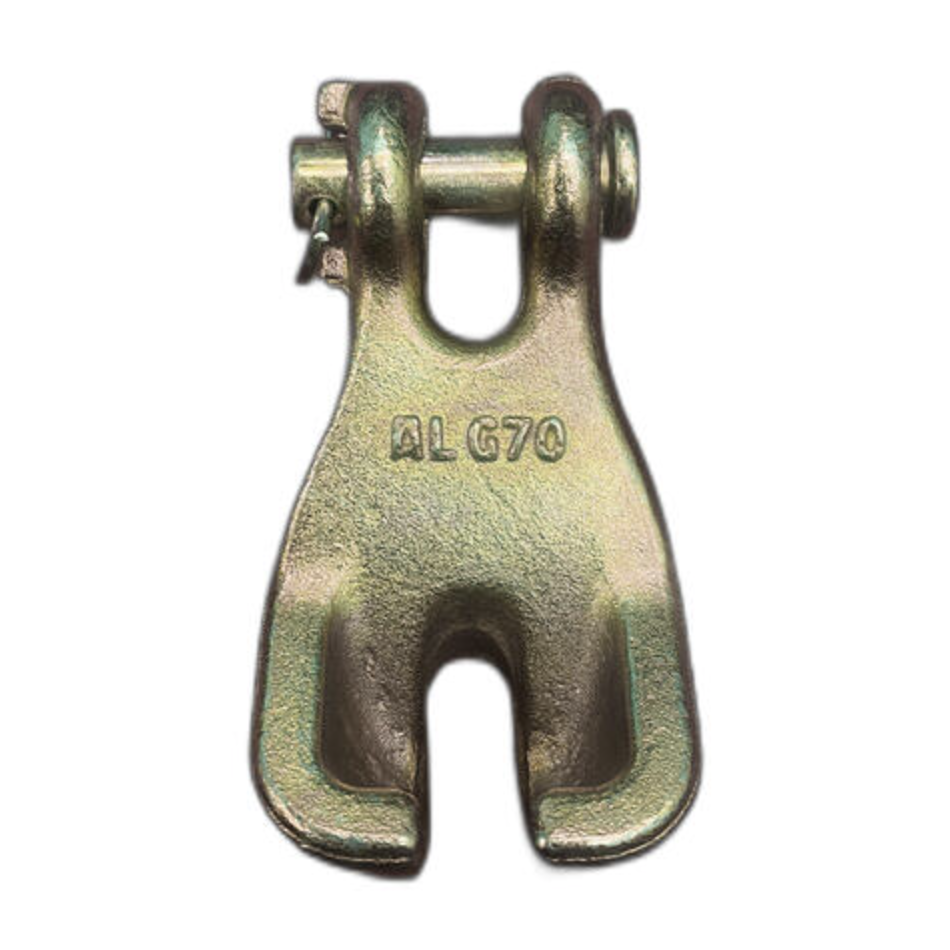

G70 Claw Hook
Loadmax Clevis Claw Hooks combined with Grade 70 Chain are an effective way to restrain heavy loads for transport operations with the benefit of full lashing capacity together with in line tension.
- Sizes available from 8 and 10mm.
- Manufactured from drop forged steel quenched and tempered and gold zinc plated.
- Marked with Chain size. lashing capacity, grade. batch numbered and branded Loadmax for traceability
- Comply with AS 4344. Batch Test Certificate available upon request.

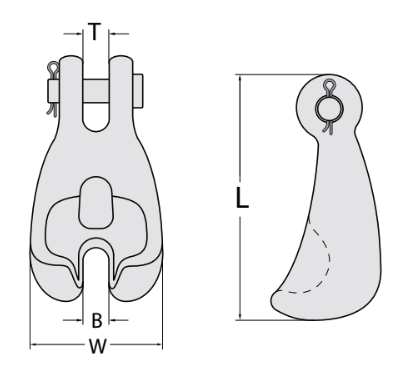

| Code | Size | L.C | Wt. | Dimensions | |||
| B | T | W | L | ||||
| mm | kg | kg | mm | mm | mm | mm | |
| 201108 | 8 | 3800 | 0.15 | 9.5 | 12.5 | 47 | 88.22 |
| 201210 | 10 | 6000 | 0.3 | 11.5 | 12.5 | 55 | 103.3 |
