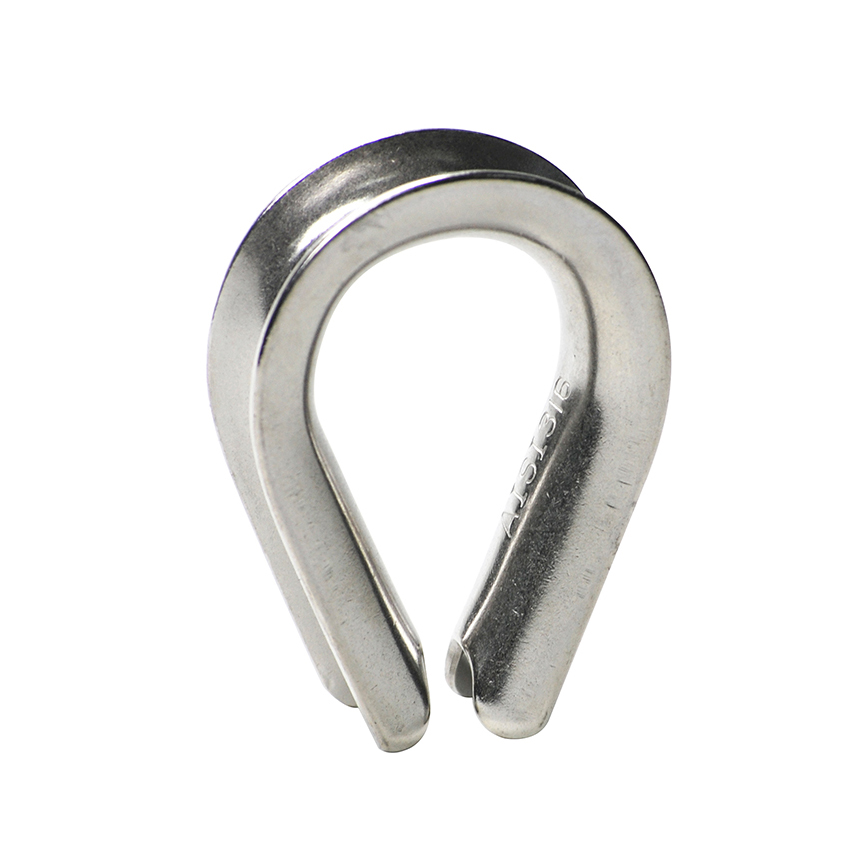

G316 Wire Rope Thimble – AISI 316, DIN689
Austlift stainless steel wire rope thimbles are for use with stainless wire rope to form a protective loop to produce a termination for architectural rigging applications.
WARNING – NOT FOR LIFTING APPLICATIONS

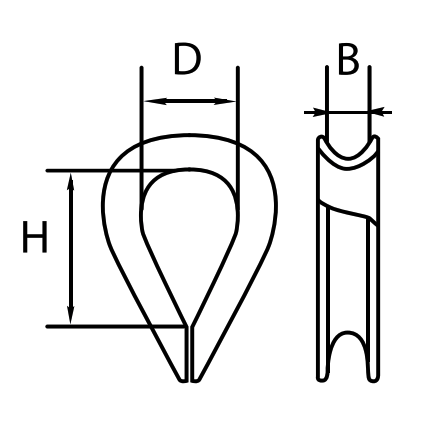

| CODE | SIZE (mm) | Wt. (kg/ea) | DIMENSIONS (mm) | ||
|---|---|---|---|---|---|
| D | H | B | |||
| 721403 | 2.5-3 | 0.006 | 12 | 19 | 3 |
| 721404 | 3.5-4 | 0.007 | 13 | 21 | 4 |
| 721405 | 4-5 | 0.011 | 14 | 23 | 5 |
| 721406 | 5-6 | 0.016 | 16 | 25 | 6 |
| 721407 | 6-7 | 0.018 | 18 | 28 | 7 |
| 721408 | 7-8 | 0.029 | 20 | 32 | 8 |
| 721410 | 9-10 | 0.037 | 24 | 38 | 10 |
| 721412 | 10-12 | 0.068 | 28 | 45 | 12 |
| 721413 | 12-13 | 0.074 | 30 | 48 | 13 |
