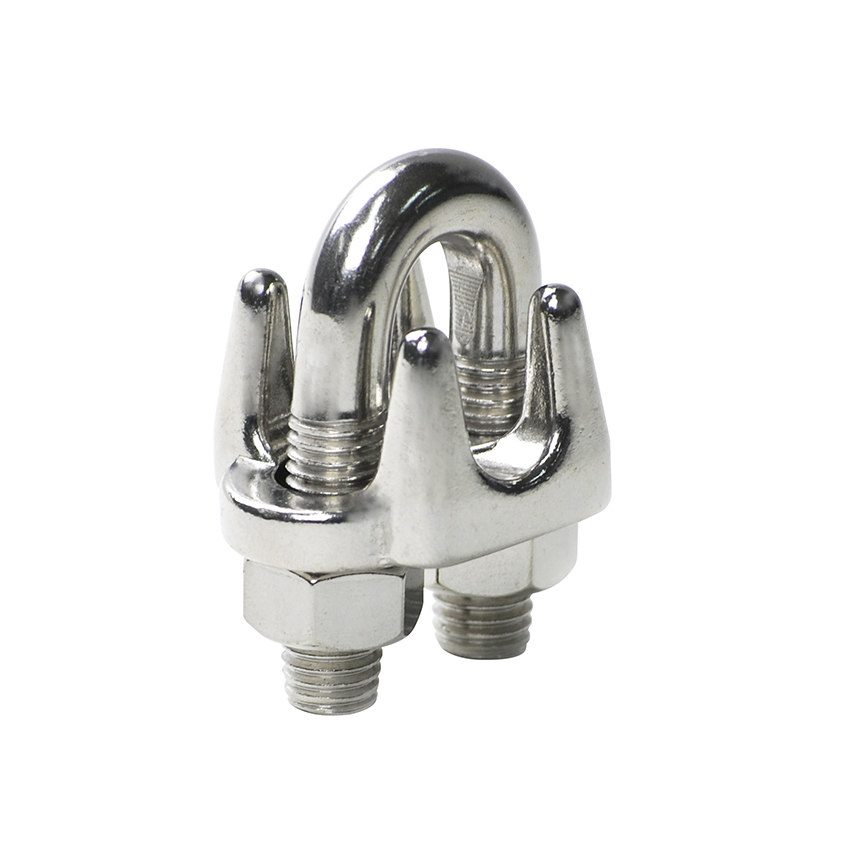

G316 Wire Rope Grip – AISI 316
Austlift stainless steel wire rope grips are for use with stainless wire rope to form a loop to produce a termination for architectural rigging applications.
WARNING – NOT FOR LIFTING APPLICATIONS

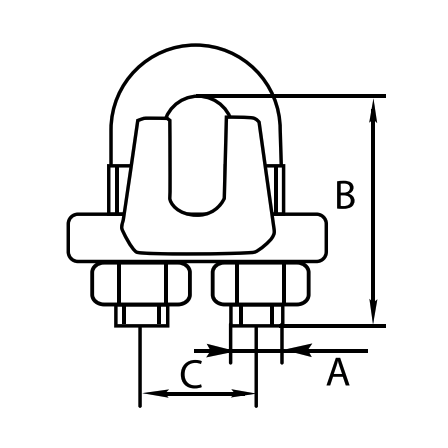

| CODE | SIZE (mm) | Wt. (kg/ea) | DIMENSIONS (mm) | ||
|---|---|---|---|---|---|
| B | C | A | |||
| 721203 | 3 | 0.010 | 17 | 7.6 | M3 |
| 721204 | 4 | 0.015 | 20.5 | 9.5 | M4 |
| 721205 | 5 | 0.023 | 20.5 | 11.5 | M5 |
| 721206 | 6 | 0.037 | 27.5 | 13.5 | M6 |
| 721208 | 8 | 0.079 | 33 | 17 | M8 |
| 721210 | 10 | 0.159 | 41 | 21 | M10 |
| 721212 | 12 | 0.231 | 49 | 24.5 | M12 |
