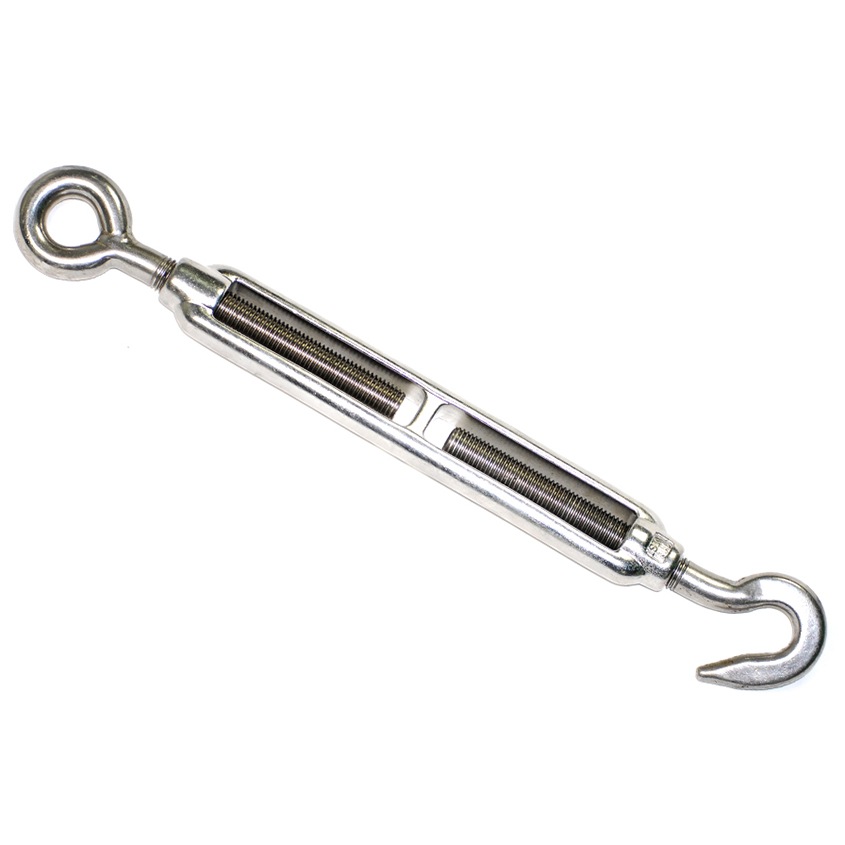

G316 Turnbuckle – Hook & Eye, AISI 316
Austlift stainless steel hook and eye turnbuckles are used as a tensioning device and commonly used for architectural, rigging and marine applications.
WARNING – NOT FOR LIFTING APPLICATIONS

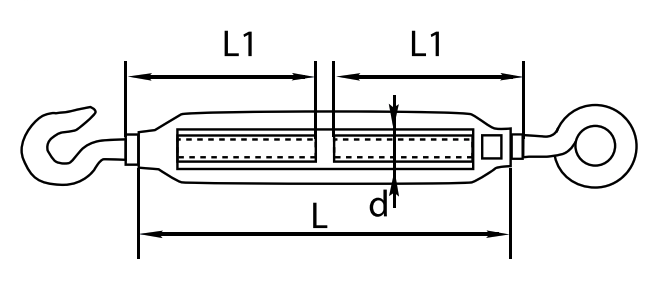

| CODE | SIZE (d) | Wt. (kg) | DIMENSIONS (mm) | |
|---|---|---|---|---|
| L | L1 | |||
| 720305 | M5 | 0.044 | 70 | 35 |
| 720306 | M6 | 0.081 | 90 | 44 |
| 720308 | M8 | 0.172 | 120 | 59 |
| 720310 | M10 | 0.298 | 150 | 73 |
| 720312 | M12 | 0.558 | 200 | 95 |
| 720316 | M16 | 1.148 | 250 | 116 |
