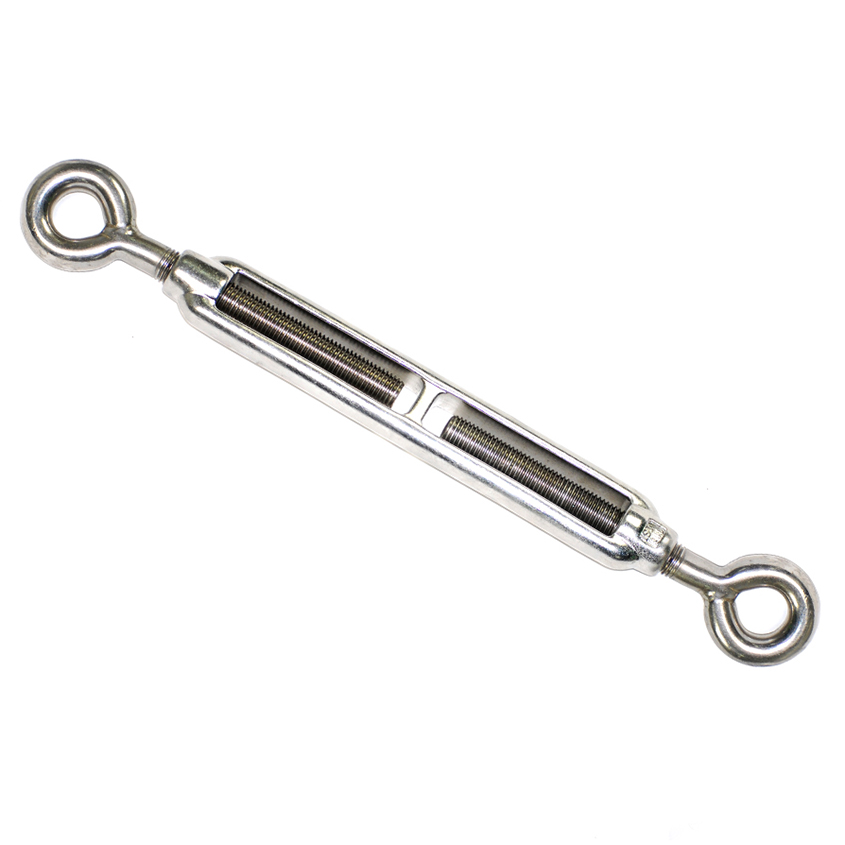

G316 Turnbuckle – Eye & Eye, AISI 316
Austlift stainless steel eye and eye turnbuckles are used as a tensioning device and commonly used for architectural, rigging and marine applications.
WARNING – NOT FOR LIFTING APPLICATIONS

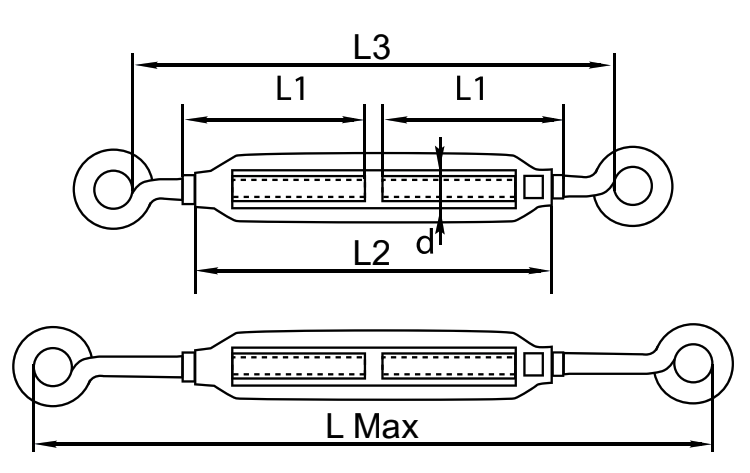

| CODE | SIZE (d) | Wt. (kg) | DIMENSIONS (mm) | ||||
|---|---|---|---|---|---|---|---|
| L | L1 | L2 | L3 | L Max | |||
| 720405 | M5 | 0.045 | 70 | 35 | 105 | 114 | 161 |
| 720406 | M6 | 0.08 | 88 | 44 | 126 | 137 | 191 |
| 720408 | M8 | 0.175 | 125 | 59 | 175 | 189 | 272 |
| 720410 | M10 | 0.3 | 155 | 73 | 217 | 233 | 340 |
| 720412 | M12 | 0.73 | 212 | 95 | 318 | 340 | 490 |
| 720416 | M16 | 1.21 | 250 | 116 | 375 | 403 | 577 |
