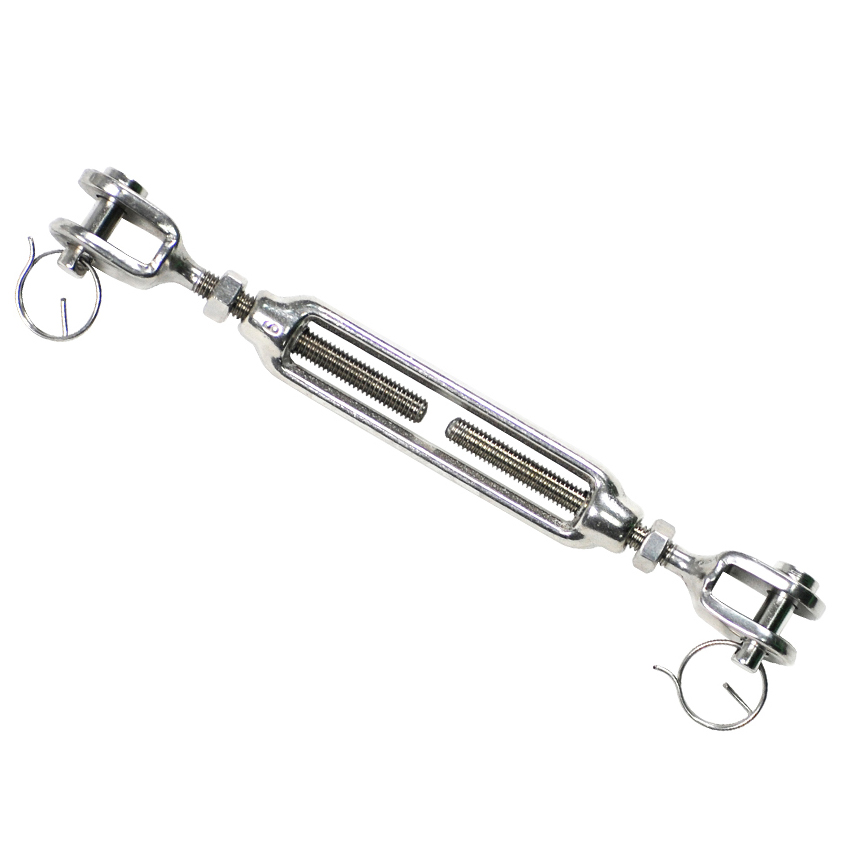

G316 Turnbuckle – Clevis & Clevis, AISI 316
Austlift stainless steel clevis and clevis turnbuckles are used as a tensioning device and commonly used for architectural, rigging and marine applications.
WARNING – NOT FOR LIFTING APPLICATIONS

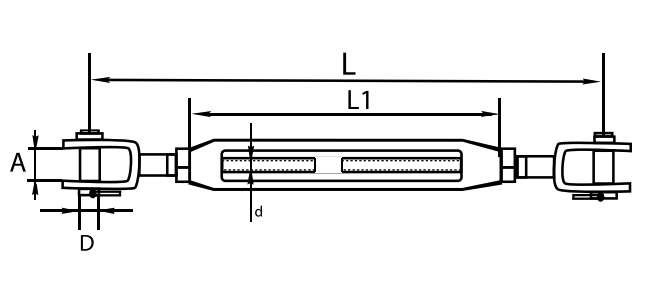

| CODE | SIZE (d) | Wt. (kg) | DIMENSIONS (mm) | |||
|---|---|---|---|---|---|---|
| L | L1 | A | D | |||
| 720505 | M5 | 0.053 | 121 | 70 | 6 | 5.2 |
| 720506 | M6 | 0.121 | 145 | 90 | 7.5 | 6.2 |
| 720508 | M8 | 0.203 | 180 | 120 | 10 | 8.7 |
| 720510 | M10 | 0.373 | 225 | 150 | 12 | 9.7 |
| 720512 | M12 | 0.68 | 300 | 200 | 14 | 12.6 |
| 720516 | M16 | 1.4 | 380 | 250 | 16 | 16 |
