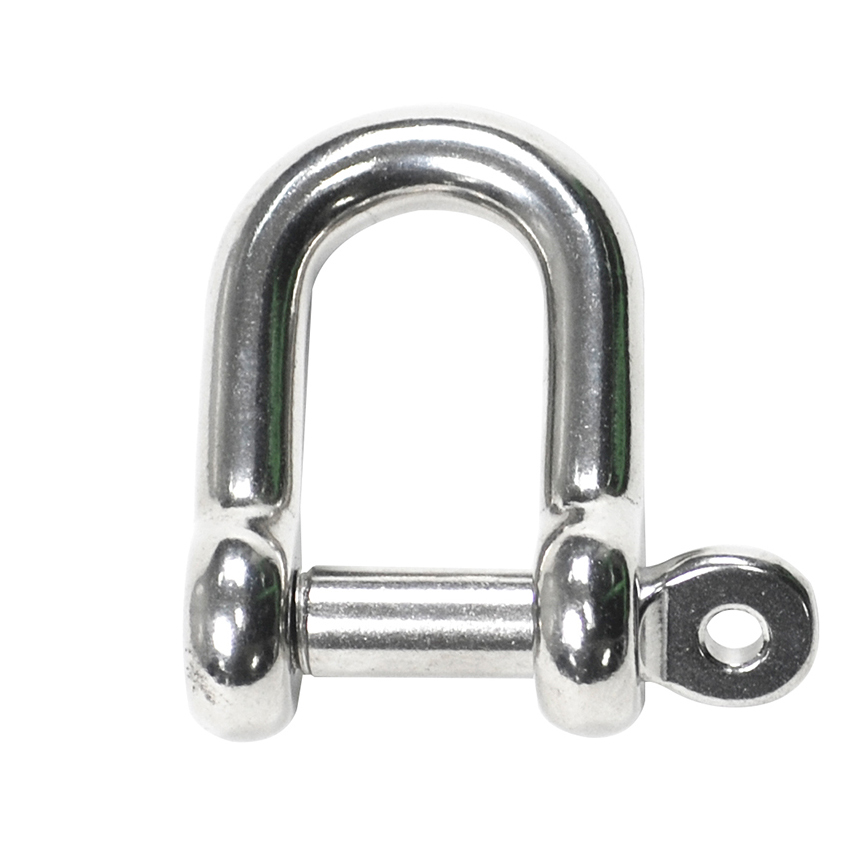

G316 Standard Dee Shackle – AISI 316
Stainless steel dee shackles are used as a temporary connection device and have a wide variety of applications.
WARNING – NOT FOR LIFTING APPLICATIONS

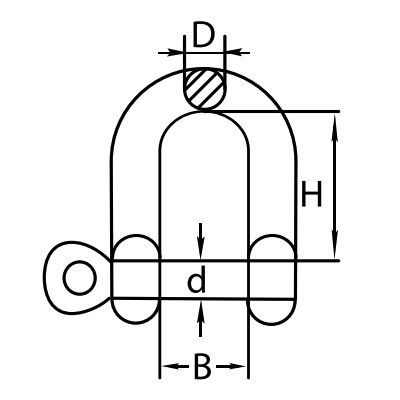

| CODE | SIZE (d) | Wt. (kg/ea) | DIMENSIONS (mm) | |
|---|---|---|---|---|
| B | H | |||
| 720106 | 6mm | 0.026 | 13 | 22 |
| 720108 | 8mm | 0.063 | 17 | 29 |
| 720110 | 10mm | 0.107 | 18 | 32 |
| 720112 | 12mm | 0.20 | 25 | 40 |
| 720116 | 16mm | 0.45 | 32 | 52 |
