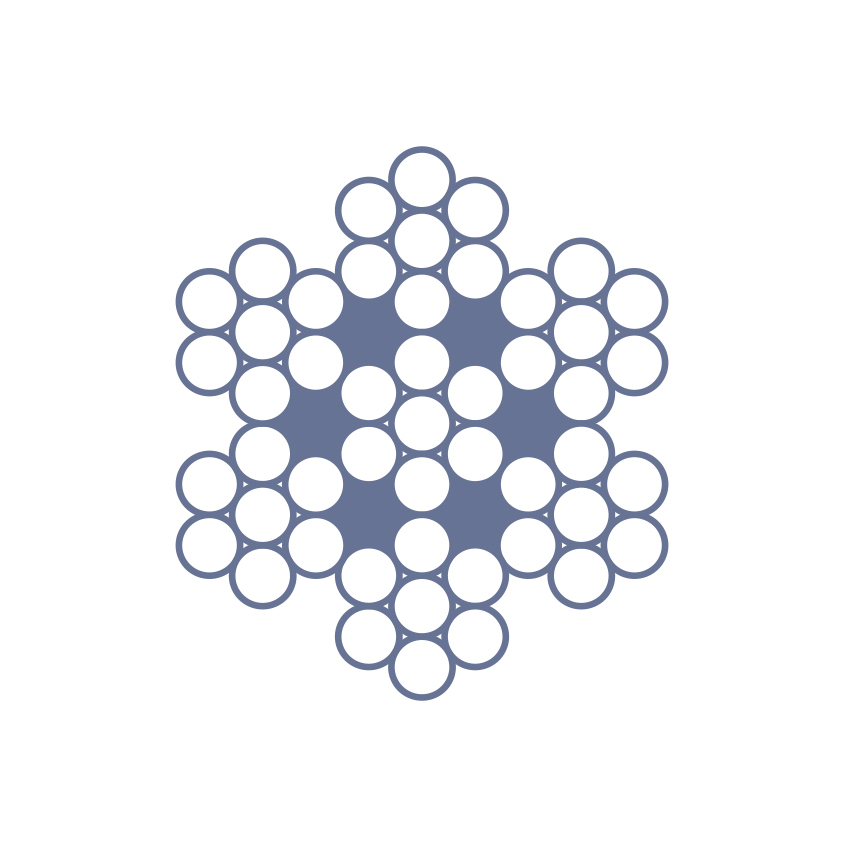

G316 Stainless Steel Wire Rope 7×7 Construction
Austlift stainless steel 7×7 wire ropes have semi-flexible characteristics suitable for use as guard rails, hand rails, luff wires and struts.
- Sizes from 1.2 – 8.0mm other sizes available upon request.
- Standard stainless steel grades of AISI 316 available.
- Conforms to AS3569.
- Test certificate available with each reel batch.
- Commonly reel lengths are 305 and 1000 metres.
- 1000 metre reel lengths are available upon request.
| CODE | SIZE | LENGTH (M) | Wt. (kg) | MIN. BREAK STRENGTH | |
|---|---|---|---|---|---|
| G316 | mm | in | |||
| 804123 | 1.2 | 3/64 | 305 | 2.07 | 87 kg |
| 804163 | 1.6 | 1/16 | 305 | 3.14 | 201 kg |
| 804203 | 2.0 | 5/64 | 305 | 5 | 277 kg |
| 804243 | 2.4 | 3/32 | 305 | 7.11 | 389 kg |
| 804253 | 2.5 | 3/32 | 305 | 7.75 | 389 kg |
| 804303 | 3.0 | 1/8 | 305 | 11 | 625 kg |
| 804323 | 3.2 | 1/8 | 305 | 12.7 | 713 kg |
| 804403 | 4.0 | 5/32 | 305 | 19.75 | 874 kg |
| 804400 | 4.0 | 5/32 | 1000 | 65 | 874 kg |
| 804503 | 5.0 | – | 305 | 30.8 | – |
| 804603 | 6.0 | 1/4 | 305 | 44.2 | 2953 kg |
| 804803 | 8.0 | 5/16 | 305 | 79 | 3780 kg |
Austlift Metal Fill Factor: 60.28%
