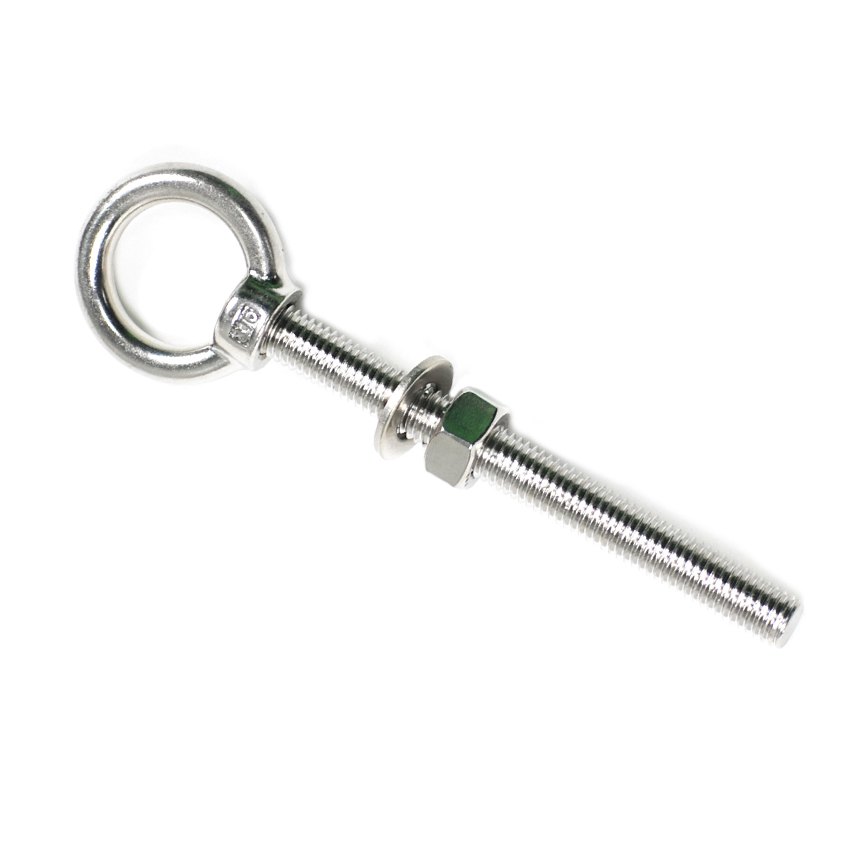

G316 Eyebolt – Long Shank, Nut & Washer, AISI 316
Stainless steel collared eye bolt long shank is used as an anchor point. and with long shank, has a wide variety of applications.
WARNING – NOT FOR LIFTING APPLICATIONS

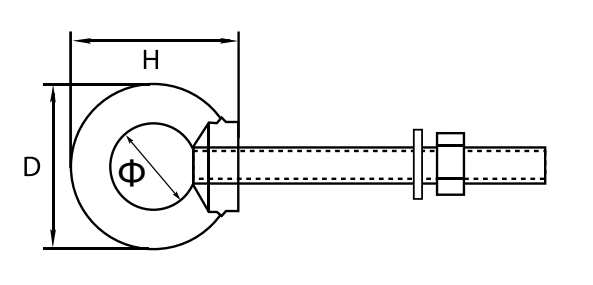

| CODE | SIZE (d) | Wt. (kg/ea) | DIMENSIONS (mm) | ||
|---|---|---|---|---|---|
| D | Ø | H | |||
| 722006 | M6x80mm | 0.030 | 26 | 16 | 30 |
| 722008 | M8x80mm | 0.058 | 31 | 19 | 34 |
| 722010 | M10x100mm | 0.106 | 39 | 25 | 42 |
| 722012 | M12x120mm | 0.118 | 45 | 29 | 47 |
