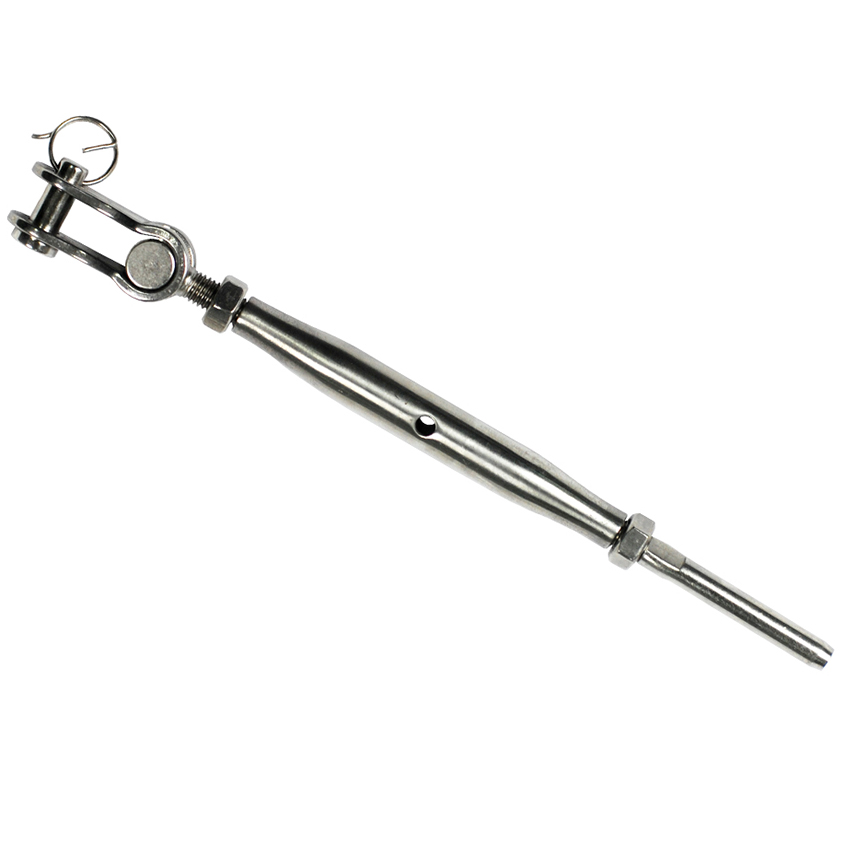

G316 Bottle Screw – Toggle & Swage Stud, AISI 316
Austlift stainless steel clevis toggle and stud bottle screws are used as a tensioning device and commonly used for architectural, balustrade rigging and marine applications
WARNING – NOT FOR LIFTING APPLICATIONS

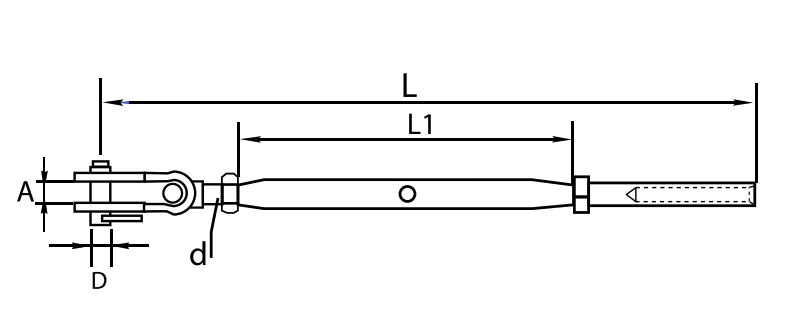

| CODE | SIZE (d) | Wt. (kg) | ROPE Ø (mm) | DIMENSIONS (mm) | |||
|---|---|---|---|---|---|---|---|
| L | L1 | A | D | ||||
| 721008 | M8 | 0.18 | 4 | 208 | 105 | 9 | 8 |
| 721010 | M10 | 0.30 | 5 | 250 | 125 | 12 | 9 |
| 721012 | M12 | 0.50 | 6 | 297 | 150 | 13 | 12 |
| 721016 | M16 | 1.15 | 8 | 396 | 190 | 18 | 16 |
| 721020 | M20 | 1.78 | 10 | 458 | 210 | 22 | 19 |
