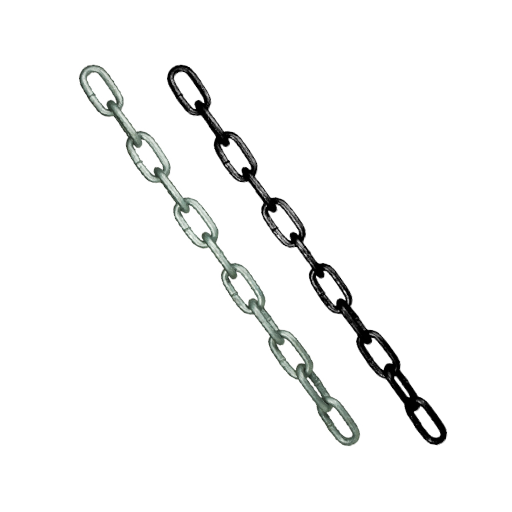

G30 Trailer Chain
Trailer chain is processed and tested in accordance with AS/NZ 4177.4.

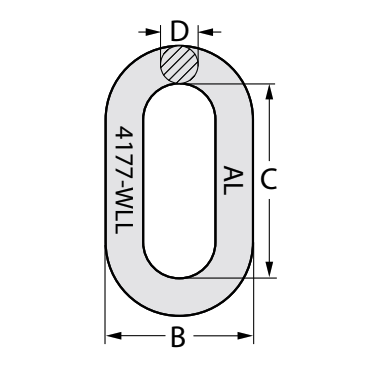

| SIZE (mm) | AGGREGATE TRAILER MASS (T) | 500KG DRUM | 50KG PAIL PACK | DIMENSIONS (mm) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| GAL | BLACK | LENGTH | GAL | BLACK | Wt. | B | C | D | ||
| 8 | 1.6 | 709008 | 179008 | 417M | 709108 | 719108 | 1.16kg | 31 | 41 | 8 |
| 10 | 2.5 | 709010 | 179010 | 256M | 709110 | 719110 | 1.9kg | 39 | 53.1 | 10 |
| 13 | 3.5 | 709013 | 719013 | 142M | 709113 | 719113 | 3.42kg | 44.5 | 53.1 | 13 |
NOTE: CTA certificate is available via the website or upon request.
