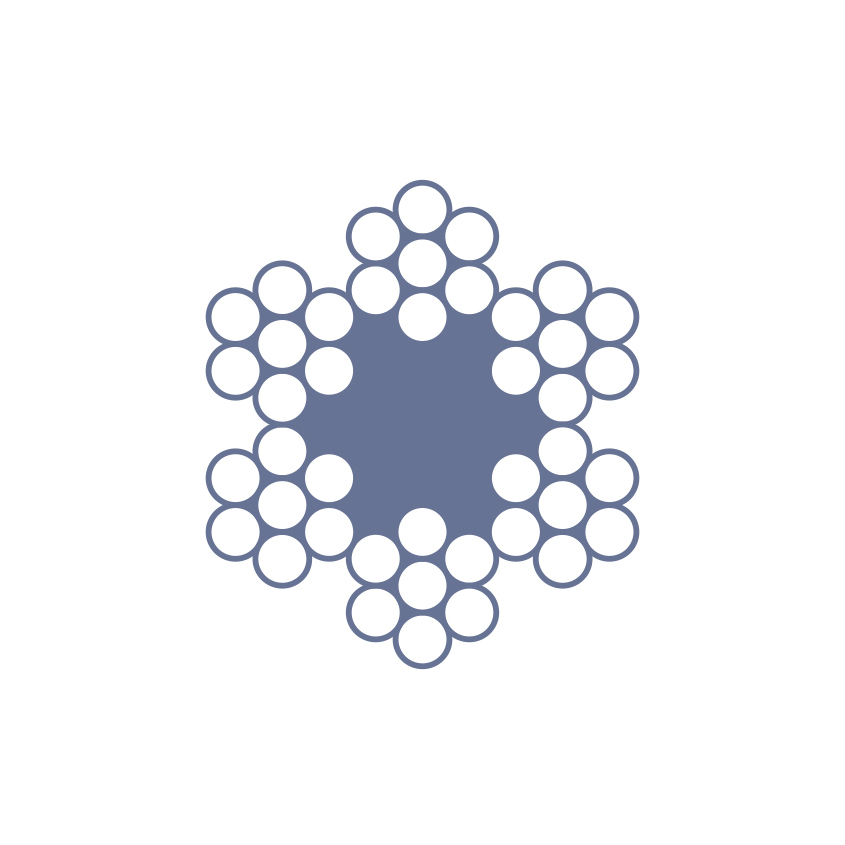

G1960 Fibre Core Galvanised Wire Rope 6×19 + FC
Austlift 6×19 fibre core galvanised wire ropes have a flexible characteristic and are suitable for, engineering winch, pulling, marine, slings and general purpose uses wherever rope is required for the application.
- Sizes available from 3mm-9mm with standard grade of G1960.
- Supplied reel lengths available are 500 and 1000 metres.
- Conforms to AS3569, test certificate available with each reel batch.
| CODE | SIZE (mm) | MBS (kN) | LENGTH (M) | Wt. (kg) |
|---|---|---|---|---|
| G1960 | ||||
| 869030 | 3 | 4.26 | 1000 | 31 |
| 869035 | 3.5 | 5.8 | 1000 | 42 |
| 869040 | 4 | 7.7 | 1000 | 55 |
| 869050 | 5 | 12 | 1000 | 86.5 |
| 869060 | 6 | 17.6 | 1000 | 124 |
| 869062 | 6 | 17.6 | 250 | 31 |
| 869080 | 8 | 30.9 | 1000 | 221 |
| 869090 | 9 | 39.1 | 1000 | 280 |
| 869095 | 9 | 39.1 | 500 | 140 |
Austlift Metal Fill Factor: 47.38%
