G1570 PVC Coated Wire Rope 6×19 + FC, Gal
Austlift PVC coated galvanised wire ropes have a flexible characteristic with polyvinyl chloride UV proof coating suitable for general purpose, architectural, marine, stage/ theatre or wherever PVC rope is required for the application.
- Sizes from 2mm wire – 3mm PVC to 10mm wire – 12mm PVC.
- Normally supplied in blue. Other colours stocked are clear (C), Black (B), Red (R), and Yellow (Y) on various sizes or available on request.

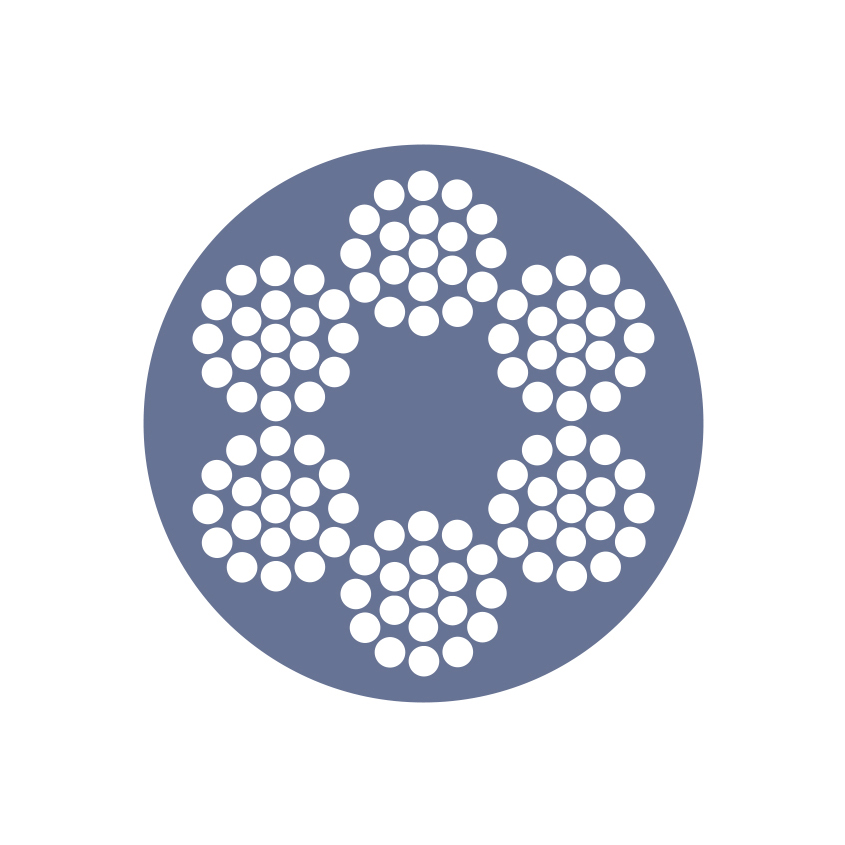

- Construction of 6x7FC and 6x19FC with standard grade of G1570 available.
- Test certificate available with each reel batch.
- Reel lengths available from 200 to 1000 metres.
- 500 metre length available upon request.
| CODE | SIZE (mm) | MBS (kN) | LENGTH (M) | Wt. (kg) | |
|---|---|---|---|---|---|
| CORE | PVC | G1570 | |||
| 811035 (R) | 3 | 5 | 6.4 | 1000 | 58.2 |
| 811040 (R) (Y) | 4 | 6 | 8.5 | 1000 | 80 |
| 811050 (C) (R) (Y) | 5 | 7 | 13.2 | 1000 | 116 |
| 811060 (B) (C) (Y) | 6 | 8 | 19.3 | 1000 | 160 |
| 811062 | 6 | 8 | 19.3 | 200 | 32 |
| 811080 | 8 | 10 | 33.3 | 1000 | 269.6 |
| 811085 | 8 | 10 | 33.3 | 500 | 134.8 |
| 811110 | 10 | 12 | 48.2 | 1000 | 404 |
| 811105 | 10 | 12 | 48.2 | 500 | 202 |
