G100 Sling Hook – Clevis Type
Austlift SC Type G100 Clevis Sling Hook are a general purpose hook suitable for most slinging applications and comes with a cast latch for added safety. Clevis allows easy connection to chain.
- Marked with chain size, designation, grade with manufacture quality mark and Austlift branded
- Manufactured from G100 alloy steel with a safety factor of 4 to 1.
- Manufactured and tested in accordance to AS 3776 but with 25% higher work load limit.
- Test Certificates available upon request.

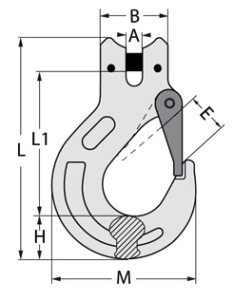

| CODE | CHAIN SIZE | WLL | Wt. | DIMENSIONS (mm) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | tonne | kg | A | B | E | H | M | L | L1 | |
| 170806 | 6 | 1.4 | 0.33 | 7.5 | 32 | 17 | 21 | 68.5 | 109 | 73 |
| 170808 | 8 | 2.5 | 0.6 | 9.5 | 37 | 23 | 27.5 | 88 | 134 | 88.5 |
| 170810 | 10 | 4 | 1.3 | 12.5 | 48 | 29 | 32 | 102 | 160 | 105 |
| 170813 | 13 | 6.7 | 2.3 | 15 | 59 | 38 | 42 | 134 | 203 | 132 |
| 170816 | 16 | 10 | 3.6 | 18.5 | 70 | 46 | 50 | 160.5 | 248 | 161 |
| 170820 | 20 | 16 | 7.3 | 25 | 85 | 50 | 56 | 190.5 | 297 | 197 |
| 170822 | 22 | 19 | 12.1 | 27 | 100 | 65 | 62 | 214.5 | 326 | 214 |
| 170826 | 26 | 26.5 | 16.1 | 30.5 | 118 | 72 | 73 | 248 | 383 | 247 |
| 170832 | 32 | 40 | 27.2 | 37.5 | 149 | 87 | 87 | 281 | 474 | 310 |
