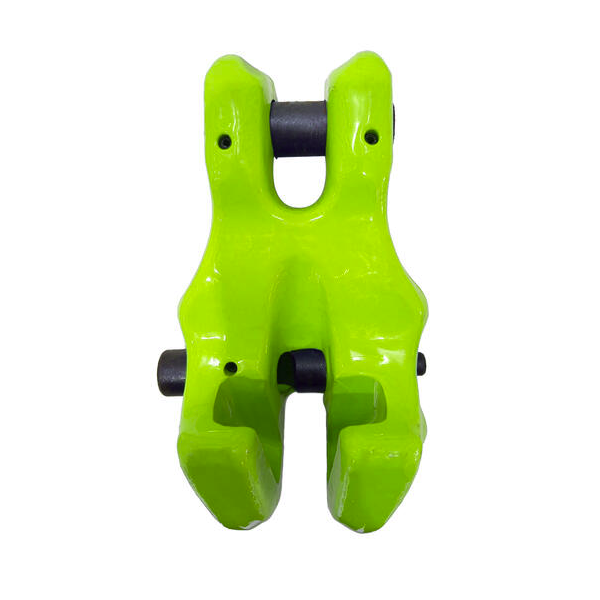

G100 Shortening Clutch – Clevis Type
Austlift CC type lockable clutches have the advantage of shortening a chain sling without loss of the working load limit of the sling. The clevis allows easy connection to chain. Not recommended for use as bottom fitting of sling for back-hooking and reeving applications.
- Marked with single and double chain size, designation, grade, manufacture quality mark and Austlift branded.
- 25% higher work load limit than G80.
- Batch tested, test certificates available upon request.
- Fatigue tested > 20,000 times.

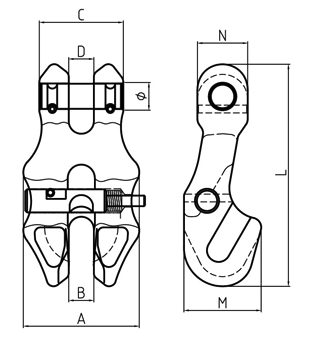

| CODE | CHAIN SIZE | WLL | Wt. | DIMENSIONS (mm) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | tonne | kg | A | B | C | D | M | N | Ø | L | |
| 171210 | 10 | 4 | 0.75 | 60 | 11.7 | 43 | 11.7 | 45.4 | 26 | 13.3 | 115 |
| 171213 | 13 | 6.7 | 1.67 | 79 | 15 | 55 | 15 | 54 | 34 | 16.3 | 149 |
| 171216 | 16 | 10 | 4.2 | 98 | 19 | 70 | 19 | 70 | 40 | 19.7 | 184 |
