G100 Self Locking Hook – Swivel Type

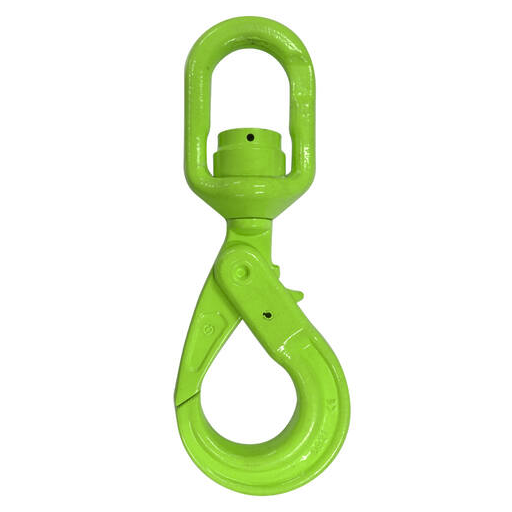

G100 Self Locking Hook Swivel

LS Type G100 Swivel Self-locking Hooks have a plain bearing swivel to allow the hook to swivel thus reducing the twist of a sling.

  • Marked with chain size, designation, grade with manufacture quality mark and Austlift branded
  • Manufactured from G100 alloy steel with a safety factor of 4 to 1.
  • Manufactured and tested in accordance to AS 3776 but with 25% higher work load limit.
  • Test Certificates available upon request.
  • Spare Trigger Kits are available.

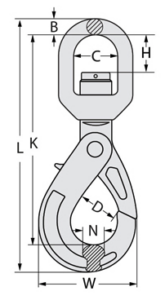

G100 Self Locking Hook Swivel Dimensions

CODE CHAIN SIZE WLL Wt. DIMENSIONS (mm)
mm tonne kg B C D H K L N W
173706 6 1.4 0.67 13.5 32.5 27 35 163 196 15 71
176708 8 2.5 1.21 15 41 35 40 203 244 21.5 90
173710 10 4 2.2 17.5 48 45 51 244 289 25.5 108
173713 13 6.7 4.4 19 55 53.6 59 295 354 32 138
173716 16 10 7.48 26 61 62 66 348 424 38 170
173720 20 16 13.75 28.5 76 76 76 399 489 50 191
173722 22 19 18.81 33 97 80 100 469 566 52 208
173726 26 26.5 31.4 42 123 100 119 565 688 60 253
173732 32 40 61.02 52 152 143 153 680 830 75 329
