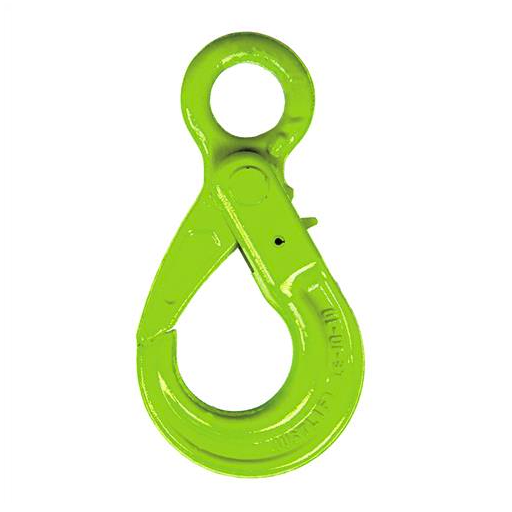

G100 Self Locking Hook – Eye Type
LE Type G100 Eye Self-Locking Hook allows the hook to be easily closed with one hand, it will close itself when the load is engaged. The Hook will not open until the trigger at the back is pressed. Eye style allows easy connection to Coup Links, Shackles and Wire.
- Marked with chain size, designation, grade with manufacture quality mark and Austlift branded.
- Manufactured from G100 alloy steel with a safety factor of 4 to 1.
- Manufactured and tested in accordance to AS 3776 but with 25% higher work load limit.
- Test Certificates available upon request.

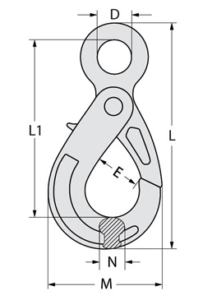

| CODE | CHAIN SIZE | WLL | Wt. | DIMENSIONS (mm) | |||||
|---|---|---|---|---|---|---|---|---|---|
| mm | tonne | kg | D | E | L | L1 | M | N | |
| 170606 | 6 | 1.4 | 0.5 | 21 | 28 | 141 | 110 | 73 | 15 |
| 170608 | 7/8 | 2.5 | 0.9 | 27 | 36 | 175 | 137 | 90 | 20 |
| 170610 | 10 | 4 | 1.5 | 34.5 | 45 | 212 | 170 | 108 | 26 |
| 170613 | 13 | 6.7 | 2.7 | 40 | 53.6 | 269 | 209 | 137.5 | 32.5 |
| 170616 | 16 | 10 | 5.7 | 50 | 61 | 333 | 256 | 170.5 | 38 |
| 170620 | 18/20 | 16 | 7.9 | 60 | 76.5 | 368.5 | 277 | 191.5 | 50 |
| 170622 | 22 | 19 | 11.2 | 70 | 76 | 417 | 319 | 205 | 52 |
| 170626 | 26 | 26.5 | 20.5 | 76 | 99 | 489 | 370 | 251 | 60 |
| 170632 | 32 | 40 | 40.35 | 95 | 135 | 620 | 469 | 329 | 75 |
