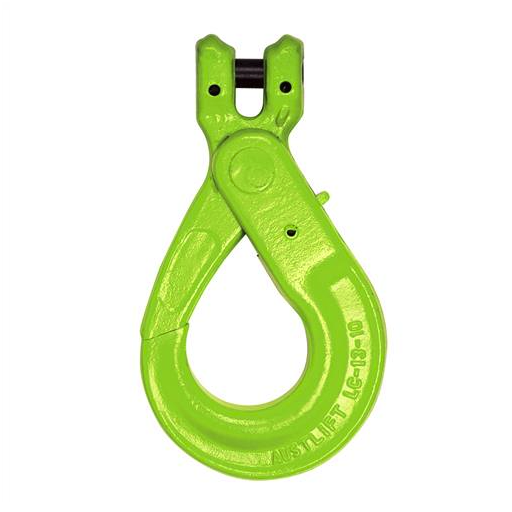

G100 Self Locking Hook – Clevis Type
LC Type G100 Clevis Self-Locking Hook allows the hook to be easily closed with one hand, it will close itself when the load is engaged. The Hook will not open until the trigger at the back is pressed. Clevis style allows easy connection to the Chain.
- Marked with chain size, designation, grade with manufacture quality mark and Austlift branded.
- Manufactured from G100 alloy steel with a safety factor of 4 to 1.
- Manufactured and tested in accordance to AS 3776 but with 25% higher work load limit.
- Test Certificates available upon request.
- Spare Trigger Kits and Load Pins are available.

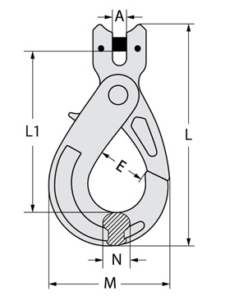

| CODE | CHAIN SIZE | WLL | Wt. | DIMENSIONS (mm) | |||||
|---|---|---|---|---|---|---|---|---|---|
| mm | tonne | kg | A | E | L | L1 | M | N | |
| 170506 | 6 | 1.4 | 0.5 | 8 | 28 | 131 | 96 | 73 | 15 |
| 170508 | 8 | 2.5 | 0.9 | 9.5 | 36 | 163 | 121 | 90 | 20 |
| 170510 | 10 | 4 | 1.4 | 12 | 45 | 194 | 144 | 108 | 26 |
| 170513 | 13 | 6.7 | 2.9 | 15 | 53.6 | 251 | 182 | 137 | 32.5 |
| 170516 | 16 | 10 | 5.5 | 18.5 | 61 | 303 | 220 | 168 | 38 |
| 170520 | 20 | 16 | 8.6 | 25 | 76.5 | 337 | 235 | 190 | 50 |
| 170522 | 22 | 19 | 12.1 | 25.5 | 76 | 386 | 271 | 202 | 52 |
| 170526 | 26 | 26.5 | 21.15 | 30 | 99 | 484 | 343 | 251 | 60 |
| 170532 | 32 | 40 | 43.4 | 35 | 135 | 601 | 423 | 329 | 75 |
