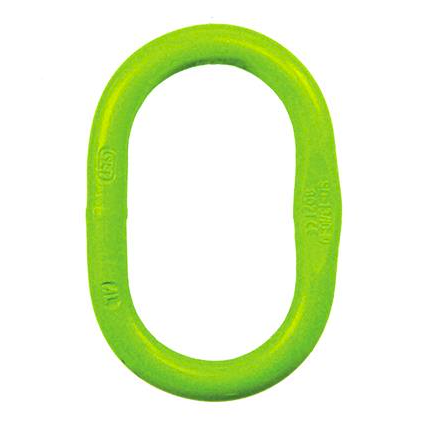

G100 Master Link
SD Type G100 Head-Rings are designed to cater for single leg and double leg Chain Slings or Wire Rope Sling applications.
- Marked with single and double chain sizes, designation, grade with manufacture quality mark and Austlift branded
- Manufactured from G100 alloy steel with safety factor of 4 to 1
- Manufactured and tested in accordance to AS 3776 but with 25% higher work load limit.
- Test Certificates available upon request.

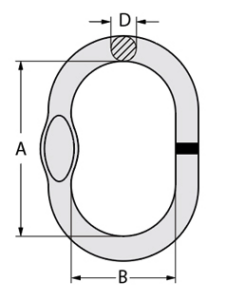

| CODE | CHAIN SIZE (mm) | WLL | Wt. | DIMENSIONS (mm) | |||
|---|---|---|---|---|---|---|---|
| 1 leg | 2 leg | tonne | kg | A | B | D | |
| 170008 | 8 | 6 | 2.5 | 0.4 | 120 | 70 | 13 |
| 170010 | 10 | 8 | 4.3 | 0.7 | 140 | 80 | 17 |
| 170013 | 13 | 10 | 6.9 | 1.5 | 160 | 95 | 22 |
| 170016 | 16 | 13 | 11.6 | 2.51 | 180 | 100 | 27 |
| 170020 | 20 | 16 | 17.3 | 5.1 | 240 | 140 | 32 |
| 170022 | 22 | 20 | 27.7 | 7.2 | 250 | 150 | 38 |
| 170026 | 26 | 22 | 32.9 | 7.86 | 250 | 150 | 40 |
| 170032 | 32 | 26 | 45.8 | 14.84 | 300 | 180 | 50 |
