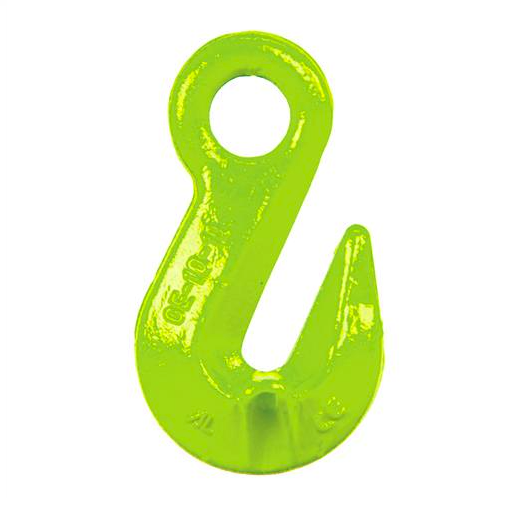

G100 Grab Hook – Eye Type
GE Type G100 Eye Grab Hook provide the fl exibility to shorten chain leg on a sling may also be used for back-hooking. Grab Hooks come with supporting lugs to allow no reduction of the working load limit. The eye is designed for ease of connection of coup-link.
- Marked with chain size, designation, grade with manufacture quality mark and Austlift branded
- Made from G100 alloy steel with safety factor of 4 to 1.
- Manufactured and tested in accordance to AS 3776 but with 25% higher work load limit.
- Test Certificates available upon request.

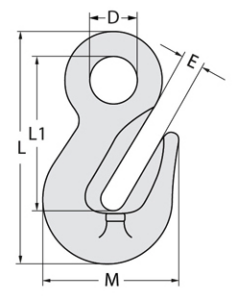

| CODE | CHAIN SIZE | WLL | Wt. | DIMENSIONS (mm) | ||||
|---|---|---|---|---|---|---|---|---|
| mm | tonne | kg | D | E | M | L | L1 | |
| 170406 | 6 | 1.4 | 0.15 | 13.5 | 8 | 46.5 | 73 | 46 |
| 170408 | 8 | 2.5 | 0.3 | 17.5 | 11 | 53 | 93 | 61 |
| 170410 | 10 | 4 | 0.79 | 22 | 13.5 | 74 | 129 | 85 |
| 170413 | 13 | 6.7 | 1.67 | 27 | 17 | 96 | 166 | 104 |
| 170416 | 16 | 10 | 2.74 | 36 | 19 | 116 | 186 | 119 |
| 170420 | 20 | 16 | 4.72 | 44 | 25 | 145 | 225 | 146 |
| 170422 | 22 | 19 | 8.2 | 48.5 | 27 | 160.5 | 260.5 | 165.5 |
| 170426 | 26 | 26.5 | 11.35 | 52 | 34 | 190 | 311 | 204 |
| 170432 | 32 | 40 | 20.65 | 64 | 41 | 229 | 373 | 246 |
