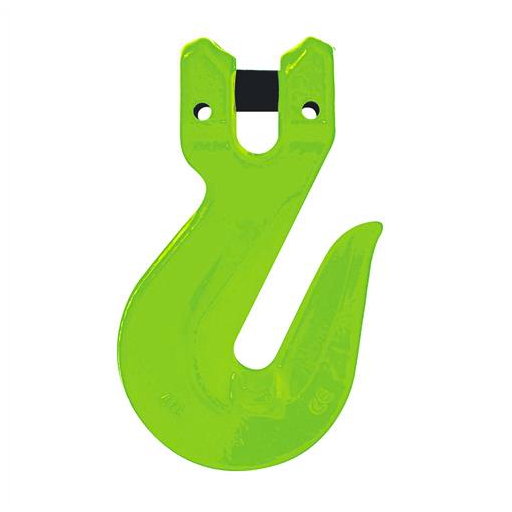

G100 Grab Hook – Clevis Type
GC Type G100 Clevis Grab Hooks provide the flexibility to shorten chain leg on a sling may also be used for back-hooking. Grab Hooks come with supporting lugs to allow no reduction of the working load limit. The clevis is designed for ease of connection of chain.
- Marked with chain size, designation, grade with manufacture quality mark and Austlift branded.
- Made from G100 alloy steel with safety factor of 4 to 1
- Manufactured and tested in accordance to AS 3776 but with 25% higher work load limit.
- Test Certificates available upon request.
| CODE | CHAIN SIZE | WLL | Wt. | DIMENSIONS (mm) | |||||
|---|---|---|---|---|---|---|---|---|---|
| mm | tonne | kg | A | B | E | L | L1 | M | |
| 170306 | 6 | 1.4 | 0.22 | 7.5 | 32 | 8 | 77.3 | 44.5 | 46.5 |
| 170308 | 8 | 2.5 | 0.34 | 9.5 | 36 | 11 | 93 | 53 | 54 |
| 170310 | 10 | 4 | 0.82 | 12.5 | 46 | 13.5 | 127 | 73 | 72 |
| 170313 | 13 | 6.7 | 1.75 | 15 | 59 | 15 | 164 | 92 | 96 |
| 170316 | 16 | 10 | 2.88 | 18.5 | 70 | 19 | 188 | 103 | 115 |
| 170320 | 20 | 16 | 4.84 | 24 | 85 | 25 | 223 | 123 | 145 |
| 170322 | 22 | 19 | 8.3 | 27 | 100 | 27 | 260 | 140 | 159 |
| 170326 | 26 | 26.5 | 13.72 | 30 | 110 | 34 | 320 | 187 | 190 |
| 170332 | 32 | 40 | 25.5 | 35 | 150 | 41 | 378 | 213 | 229 |
