Fuel & Oil Suction & Delivery 10 bar (150psi) – Alfagomma 605AA

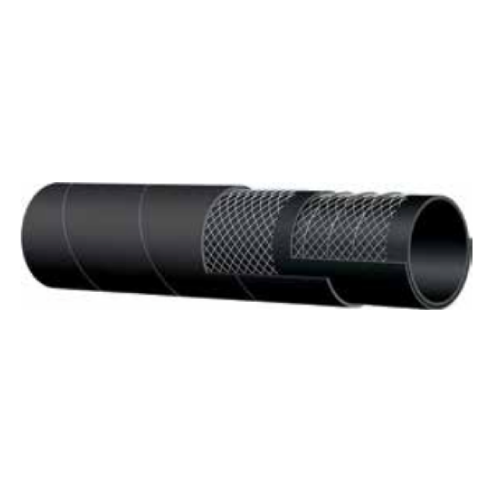

605AA Cross Section

Tube: Black conductive NBR
Reinforcement: High tensile textile cords with embedded steel helix wire
Cover: Black CR – abrasion, ozone, hydrocarbon and flame resistant
Application: Fuel and oil suction and delivery. Specially designed for tank truck and general industrial applications. Also suitable for marine wet exhaust and bilge pump connection.
Working Pressure: 10 bar / 150 psi
Burst Pressure: 30 bar / 450 psi
Constant Operation: -30°C +80°C (-22°F +176°F)

Internal Diameter Outer Diameter Working Pressure Burst Pressure Bend Radius  Vacuum Weight
ID mm ID inch OD mm OD Inch bar psi  bar psi mm in  % kg/m lb/ft
19 3/4″ 30 1.18 10 150 30 450 76 2.99 100 0.59 0.40
25 1″ 36 1.42 10 150 30 450 100 3.94 100 0.75 0.51
30 1 3/16″ 41 1.61 10 150 30 450 120 4.72 100 0.89 0.60
32 1 1/4″ 43 1.69 10 150 30 450 128 5.04 100 0.94 0.64
35 1 3/8″ 46 1.81 10 150 30 450 140 5.51 100 1.02 0.69
38 1 1/2″ 49 1.93 10 150 30 450 152 5.98 100 1.02 0.69
40 1 9/16″ 51 2.01 10 150 30 450 160 6.30 100 1.14 0.77
42 1 5/8″ 53 2.09 10 150 30 450 168 6.61 100 1.19 0.80
45 1 3/4″ 56 2.20 10 150 30 450 180 7.09 100 1.26 0.85
48 1 7/8″ 59 2.32 10 150 30 450 192 7.56 100 1.33 0.90
51 2″ 61 2.44 10 150 30 450 204 8.03 100 1.41 0.95
57 2 1/4″ 68 2.68 10 150 30 450 228 8.98 100 1.57 1.06
60 2 3/8″ 73 2.87 10 150 30 450 240 9.45 100 1.98 1.34
63 2 1/2″ 76 2.99 10 150 30 450 252 9.92 90 2.06 1.39
70 2 3/4″ 83 3.27 10 150 30 450 280 11.02 90 2.30 1.55
76 3″ 89 3.50 10 150 30 450 304 11.97 90 2.47 1.66
80 3 1/8″ 94 3.70 10 150 30 450 320 12.60 90 2.65 1.79
90 3 1/2″ 104 4.09 10 150 30 450 360 14.17 90 3.09 2.08
102 4″ 116 4.57 10 150 30 450 408 16.06 90 3.44 2.32
110 4 5/16″ 124 4.88 10 150 30 450 440 17.32 90 4.15 2.79
115 4 1/2″ 129 5.08 10 150 30 450 460 18.11 90 4.32 2.91
120 4 3/4″ 138 5.43 10 150 30 450 480 18.90 80 5.53 3.72
127 5″ 145 5.71 10 150 30 450 508 20.00 80 5.81 3.91
133 5 1/4″ 151 5.94 10 150 30 450 532 20.94 80 6.05 4.07
152 6″ 170 6.69 10 150 25 375 608 23.94 80 7.23 4.86
203 8″ 225 8.86 10 150 25 375 812 31.97 70 11.47 7.71
