FRAS Fire Resistant Anti Static Hose – Barfell

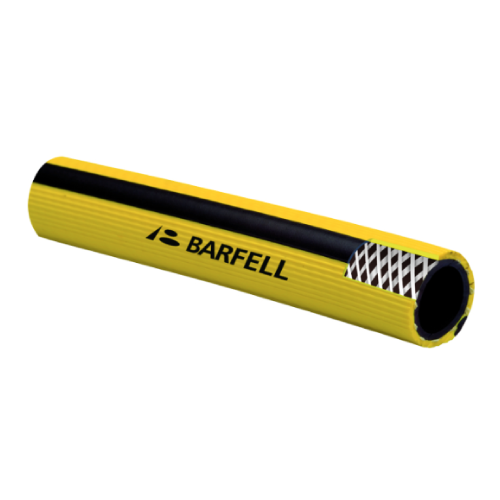

Fire resistant anti static hose with a unique 3 layer construction that offers optimum performance and handling characteristics.
Inner Wall: Black
Outer Wall: Ribbed Yellow with black stripe.
Application: Underground air and water mining hose.
Manufactured: to AS2660 Class A (1991) and AS/NZ2554 Class A.
| Diameter (mm) | Working Press. (at 20°C) | Burst Press. (at 20°C) | Weight | |||
| ID | OD | Mpa | P.S.I | Mpa | P.S.I | kg/m |
| 10 | 18 | 2.1 | 305 | 8.4 | 1200 | 0.25 |
| 12.5 | 20.9 | 2.1 | 305 | 8.4 | 1200 | 0.26 |
| 20 | 29.4 | 2.1 | 305 | 8.4 | 1200 | 0.58 |
| 25 | 34.8 | 2.1 | 305 | 8.4 | 1200 | 0.71 |
| 38 | 48.8 | 2.1 | 305 | 8.4 | 1200 | 1.19 |
| 50 | 62.4 | 2.1 | 305 | 8.4 | 1200 | 1.80 |
