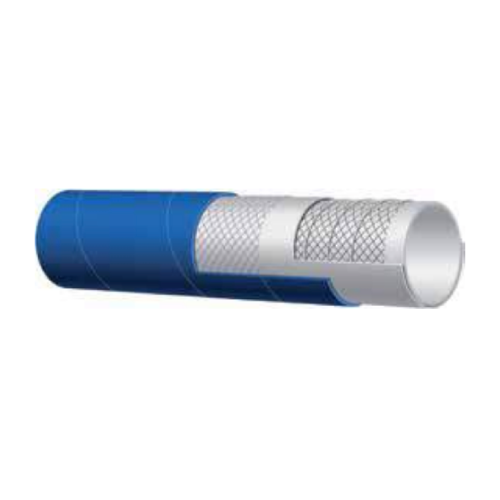

Food Tanker Suction & Delivery 10 Bar (150 psi) Hard Wall Crush Resistant – Alfagomma 418LE
FDA ARRETE DU 09/11/94 D
Tube: White NR
Reinforcement: High tensile textile cords with embedded PET helix.
Cover: Blue NR/EPDM – abrasion and ozone resistant.
Application: Liquid food and alcoholic beverages suction and delivery max 50% ABV.
Special lightweight construction for maximum flexibility and crush resistance in food tanker applications.
Sterilise with 110°C steam for 10 minutes or with 5% soda solution.
Working Pressure: 10 bar / 150 psi
Burst Pressure: 30 bar / 450 psi
Constant Operation: -40°C +80°C (-40°F +176°F)
| Internal Diameter | Outer Diameter | Wall Thickness | Weight | |||
| ID mm | ID inch | OD mm | OD Inch | mm | kg/m | lb/ft |
| 25 | 1″ | 37 | 1.46 | 6 | 0.90 | 0.61 |
| 38 | 1 1/2″ | 52 | 2.05 | 7 | 1.02 | 0.69 |
| 40 | 1 9/16″ | 53 | 2.09 | 6.5 | 1.06 | 0.72 |
| 51 | 2″ | 64 | 2.52 | 6.5 | 1.31 | 0.89 |
| 63 | 2 1/2″ | 76 | 2.99 | 6.5 | 1.93 | 1.30 |
| 76 | 3″ | 92 | 3.62 | 8 | 2.63 | 1.77 |
