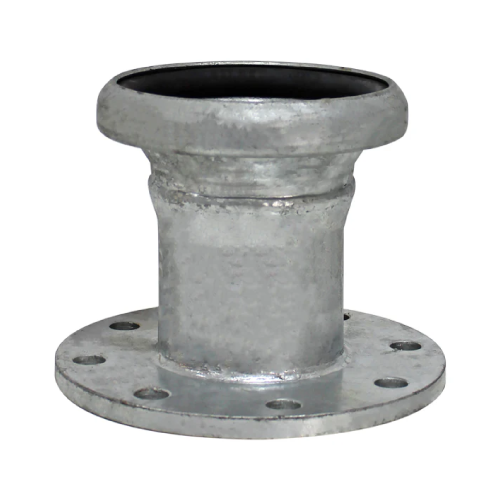

Female Flange (Table D) with O-Ring – Bauer Coupling

Applications
– Irrigation suction and delivery hose connections
– Heavy duty mining suction and delivery slurry line connections
– Medium vacuum line connectors
– Waste water suction and delivery line connectors

Features
– Quick connect and disconnect
– Up to 30° bending angle at the coupling joint whilst maintaining maximum flow
– Ideal for difficult sites
– Rubber seal provides an excellent seal under both pressure and vacuum
– Heavy duty machined tails for extra heavy duty applications where reduced distortion may be required
– Up to 20 bar working pressure

Materials
– Mild Steel, Hot dipped Galvanised finish

Maximum Working Pressure
– Sizes 50 – 90 mm – 290 psi
– Sizes 100 – 300 mm – 174 psi
