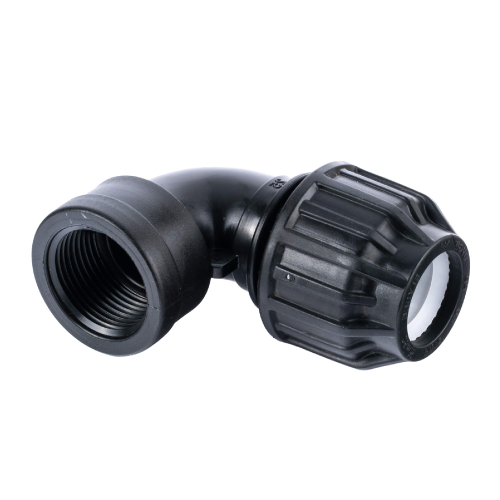

Female Elbow – Poly Compression Fitting

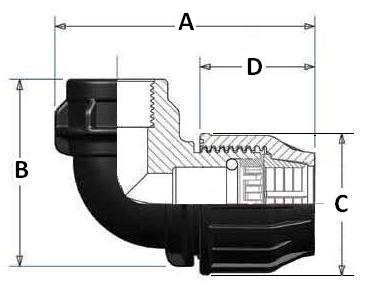

| Code | Pipe x Thread | A | B | C | D | Weight (g) |
| EF020015 | 20 x 1/2 | 91.35 | 68.25 | 46 | 39.5 | 68.1 |
| EF020020 | 20 x 3/4 | 91.35 | 67.5 | 46 | 39.5 | 64.9 |
| EF025015 | 25 x 1/2 | 104.13 | 73.75 | 52.5 | 41.25 | 83.8 |
| EF025020 | 25 x 3/4 | 103.88 | 74.25 | 52.5 | 41.25 | 78.7 |
| EF025025 | 25 x 1 | 92.38 | 74.75 | 52.5 | 41.25 | 82.9 |
| EF032020 | 32 x 3/4 | 121.25 | 80 | 63.75 | 51.75 | 122 |
| EF032025 | 32 x 1 | 121 | 74.5 | 63.75 | 51.75 | 117 |
| EF040032 | 40 x 1 1/4 | 136.63 | 97.7 | 78.25 | 60.75 | 229 |
| EF040040 | 40 x 1 1/2 | 137.28 | 96.95 | 78.25 | 60.75 | 239 |
| EF050040 | 50 x 1 1/2 | 153.98 | 111.5 | 92.5 | 60.75 | 325 |
| EF050050 | 50 x 2 | 156.38 | 112.6 | 92.5 | 60.75 | 312 |
| EF063050 | 63 x 2 | 190.65 | 134.25 | 109 | 82.75 | 455 |
| EF063065 | 63 x 2 1/2 | 190.6 | 137.5 | 109 | 82.75 | 487 |
| EF075065 | 75 x 2 1/2 | 217.2 | 173 | 132.5 | 107.5 | 945 |
| EF075080 | 75 x 3 | 219.7 | 175 | 132.5 | 107.5 | 871 |
| EF090080 | 90 x 3 | 264.83 | 170.5 | 151.5 | 131.25 | 1218 |
| EF110100 | 110 x 4 | 433 | 240 | 175.5 | 166.5 | 1620 |
