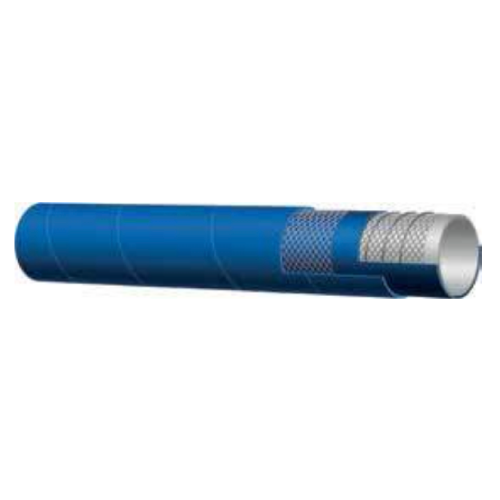

Fat Food Suction & Delivery 10 Bar (150 psi) – Alfagomma 405LE
Tube: White NBR
Reinforcement: High tensile textile cords with embedded steel helix wire.
Cover: Blue NBR/PVC – abrasion, ozone and oil resistant.
Application: Liquid fat food and alcoholic beverages suction and delivery max 75% ABV.
Sterilise with 130°C (266°F) steam for 30 minutes or with 5% soda solution.
Working Pressure: 10 bar / 150 psi
Burst Pressure: 30 bar / 450 psi
Constant Operation: -30°C +100°C (-22°F +212°F)
| Internal Diameter | Outer Diameter | Wall Thickness | Weight | |||
| ID mm | ID inch | OD mm | OD Inch | mm | kg/m | lb/ft |
| 19 | 3/4″ | 31 | 1.22 | 6 | 0.73 | 0.50 |
| 25 | 1″ | 37 | 1.46 | 6 | 0.91 | 0.62 |
| 32 | 1 1/4″ | 44 | 1.73 | 6 | 1.08 | 0.73 |
| 38 | 1 1/2″ | 50 | 1.97 | 6 | 1.26 | 0.85 |
| 51 | 2″ | 63 | 2.48 | 6 | 1.63 | 1.10 |
| 63 | 2 1/2″ | 75 | 2.95 | 6 | 2.14 | 1.44 |
| 76 | 3″ | 88 | 3.46 | 6 | 2.57 | 1.73 |
| 102 | 4″ | 116 | 4.57 | 7 | 3.56 | 2.40 |
