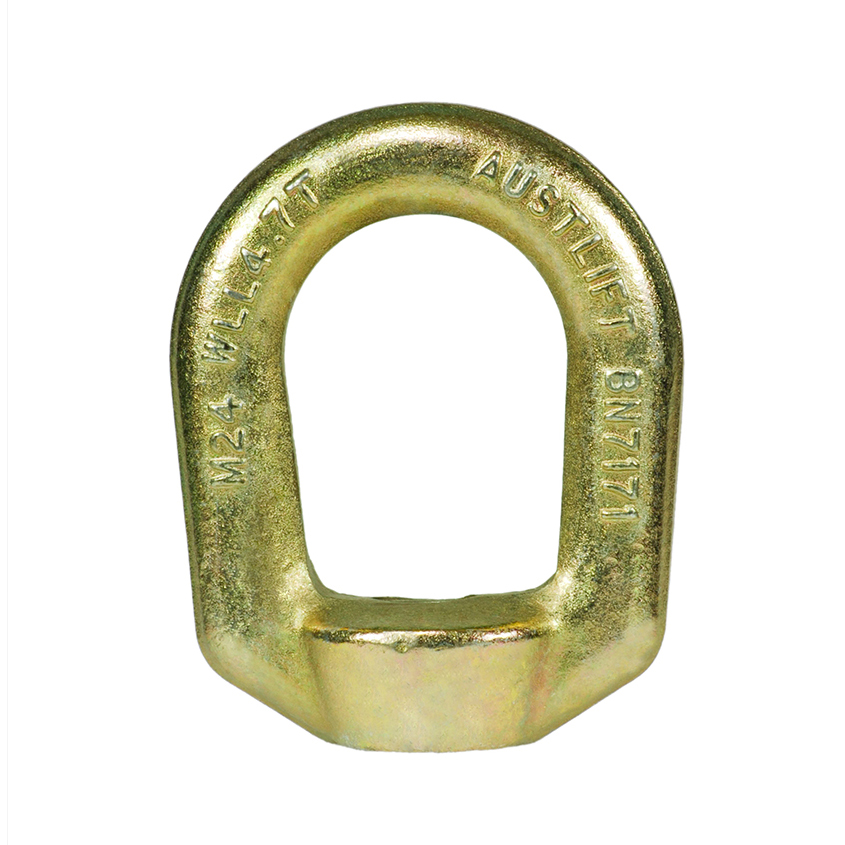

Eye Bow Nut (M24)
Bow nut in accordance with requirements of ASME B30.26, used as a removable hanging eye nut where a rated male thread or bolt can be utilised commonly used in the mining industry.
- Made from C15 carbon steel and tempered with zinc plated finish, manufactured with a bow shape, available in metric thread sizes only.
- Marked with a working load limit in tonne, nominal size in millimetre, batch numbered and supplier identification.
- Proof tested to 2 x working load limit and minimum breaking force of 5 x working load limit

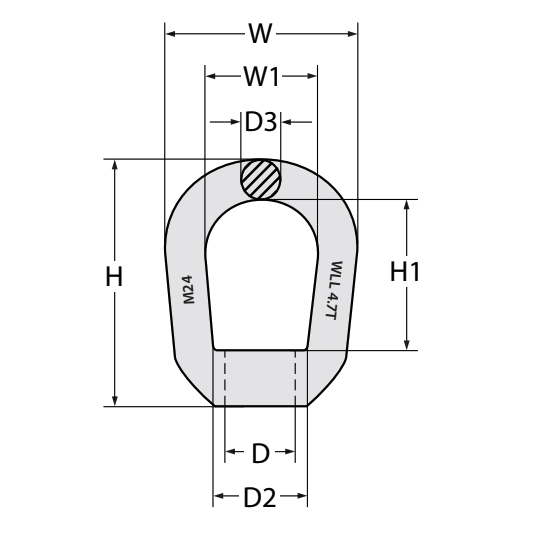

| CODE | SIZE (in) | WLL (T) | Wt. (kg) | DIMENSIONS (mm) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| D | D2 | D3 | H | H1 | W | W1 | ||||
| 602035 | M24 | 4.7 | 1.18 | 24 | 46 | 21 | 125 | 75 | 98 | 53 |
