Eye Bolt – AS 2317.1:2018 / BS529 (with Imperial Whitworth Sizing)

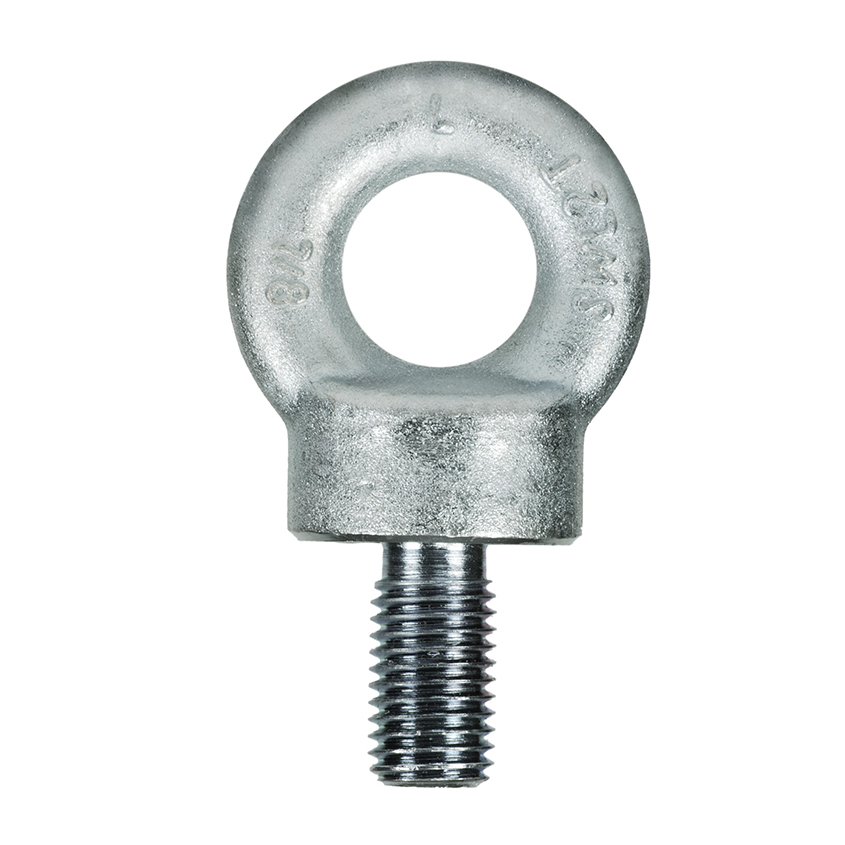

BS529 eye bolts are generally used as a removable lifting point where a rated female thread of nut can be utilised, also can be used as a termination for chain, wire rope and other assemblies where required.
- Made from Grade 4 carbon steel following steel specifications of AS 2017.1:2018 / BS970 with zinc plated finish, manufactured with a smaller eye than DIN type.
- Conforms to AS2317.1:2018, marked with manufacturers identification, axial and transverse working load limit on the collar with direction indication arrows in tonne, thread type, nominal size, and batch numbered.
- Proof tested to 2 x working load limit and minimum breaking force of 6 x working load limit.
- Test certificates are supplied upon request.

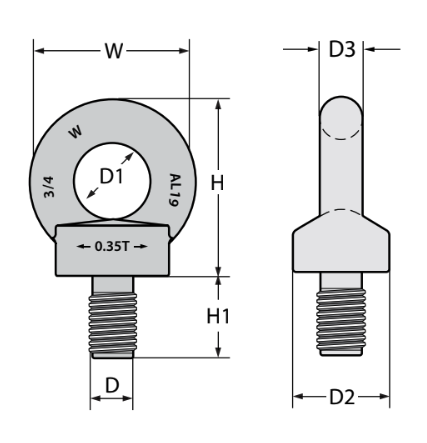

| CODE | SIZE (in) | PITCH (is) | SWL (T) | Wt. (kg) | DIMENSIONS (mm) | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| D | D1 | D2 | H | H1 | W | |||||
| 604005 | 3/8″ | 0.0625 | 0.3 | 0.07 | 10 | 14 | 22 | 35 | 18 | 32 |
| 604010 | 1/2″ | 0.0833 | 0.5 | 0.16 | 12 | 19 | 28 | 45 | 23 | 42 |
| 604015 | 5/8″ | 0.0909 | 0.9 | 0.313 | 16 | 24 | 36 | 59 | 30 | 53 |
| 604020 | 3/4″ | 0.1000 | 1.4 | 0.525 | 20 | 28 | 44 | 69 | 37 | 62 |
| 604025 | 7/8″ | 0.1250 | 2.0 | 0.825 | 22 | 33 | 50 | 81 | 42 | 72 |
| 604030 | 1″ | 0.1429 | 2.8 | 1.25 | 24 | 37 | 58 | 91 | 47 | 82 |
| 604035 | 1 1/4″ | 0.1429 | 4.6 | 2.03 | 32 | 48 | 72 | 115 | 62 | 104 |
| WORKING LOAD LIMIT FOR IMPERIAL AS/BS STANDARD EYE BOLTS | ||||||
|---|---|---|---|---|---|---|
| IMPERIAL | SINGLE EYE BOLT | PAIR OF EYE BOLTS | ||||
| AXIAL (T) | TRANSVERSE (T) | TRANSVERSE (T) | MAXIMUM INCLUDED ANGLE 30° (T) | MAXIMUM INCLUDED ANGLE 60° (T) | MAXIMUM INCLUDED ANGLE 90° (T) | |
 |
 |
 |
 |
 |
 |
|
| LOADING FACTOR | 1 | 0.25 | 0.5 | 1.25 | 0.8 | 0.5 |
| 3/8″ | 0.3 | 0.075 | 0.15 | 0.375 | 0.24 | 0.15 |
| 1/2″ | 0.5 | 0.125 | 0.25 | 0.625 | 0.4 | 0.25 |
| 5/8″ | 0.9 | 0.225 | 0.45 | 1.125 | 0.72 | 0.45 |
| 3/4″ | 1.4 | 0.36 | 0.7 | 1.75 | 1.12 | 0.7 |
| 7/8″ | 2.0 | 0.5 | 1.0 | 2.5 | 1.6 | 1.0 |
| 1″ | 2.8 | 0.7 | 1.4 | 3.5 | 2.24 | 1.4 |
| 1-1/8″ | 3.6 | 0.9 | 1.8 | 4.5 | 2.88 | 1.8 |
| 1-1/4″ | 4.6 | 1.15 | 2.3 | 5.75 | 3.68 | 2.3 |
