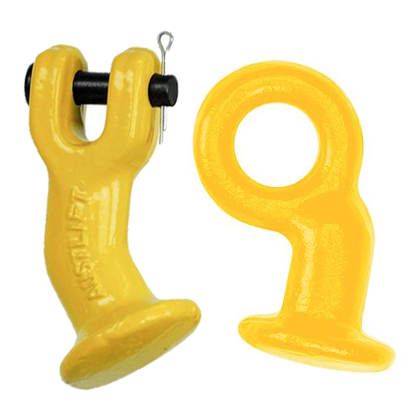

Elephants Foot – Clevis / Eye Type
Elephants Foot are commonly used as a lashing point to secure trucks, cars, container chassis and other vehicles on ships and barges in the marine industry.
- Lashing capacity of 5,000 kg with a minimum break load of 20,000 kg.
- Test Certificates available upon request.

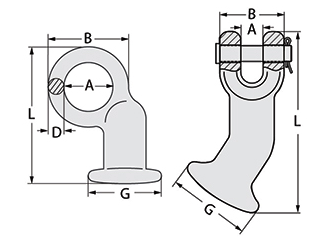

| CODE | Type | WLL | Wt. | DIMENSIONS (mm) | ||||
|---|---|---|---|---|---|---|---|---|
| tonne | kg | A | B | D | G | L | ||
| 106100 | Eye | 5 | 0.74 | 28 | 60 | 16 | 52.5 | 116 |
| 106200 | Clevis | 5 | 0.99 | 16 | 46 | – | 59 | 130 |
