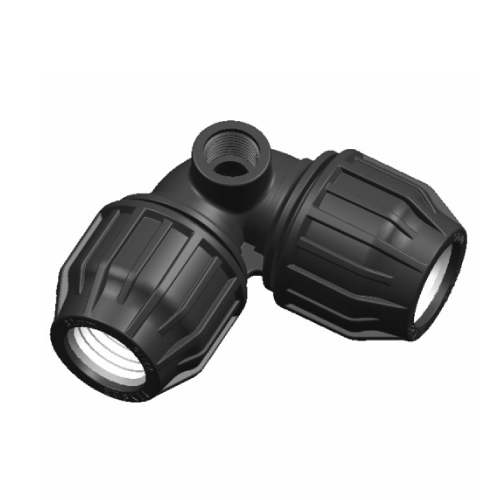

Elbow Take-Off Female – Poly Compression Fitting

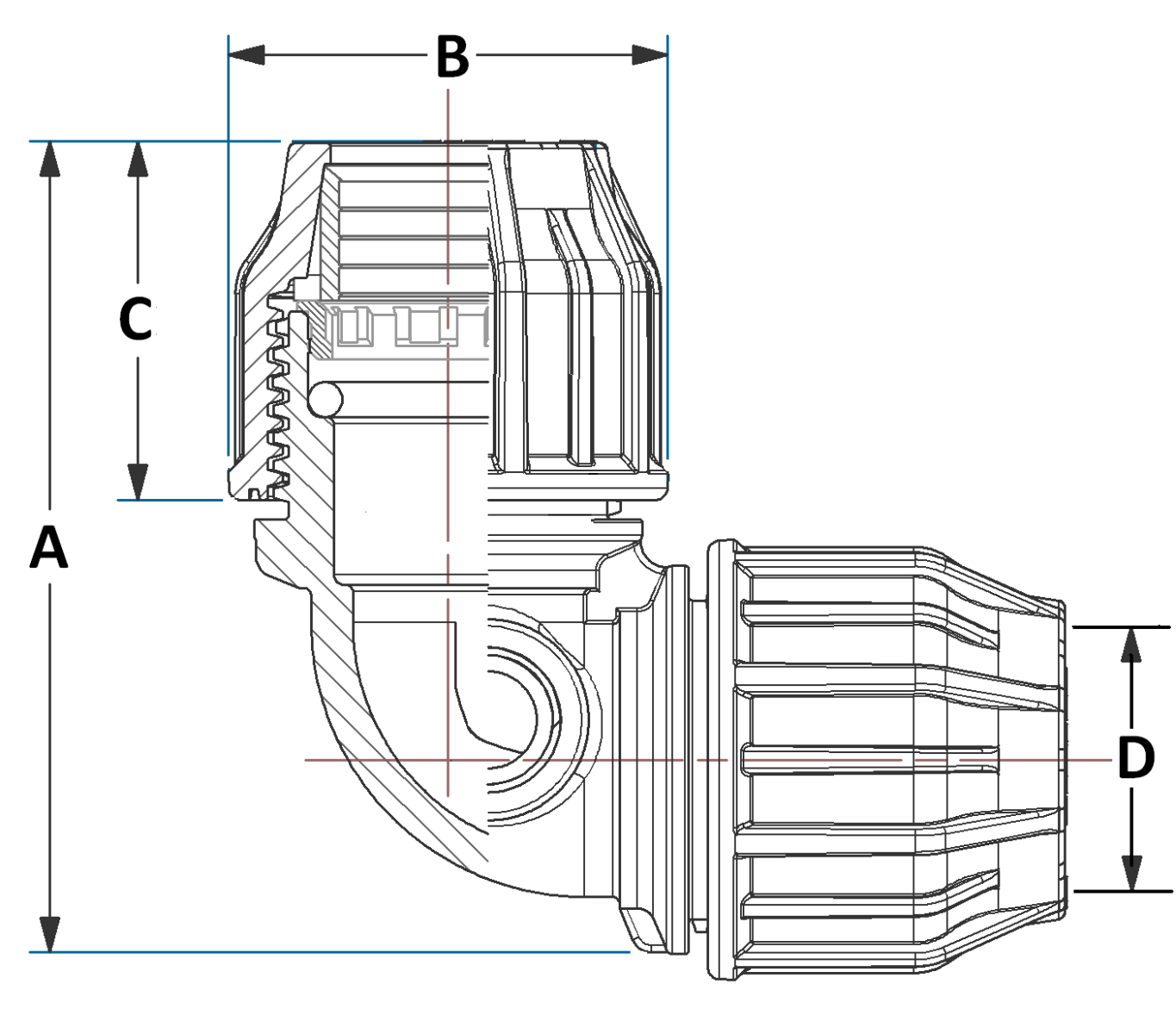

| Code | Pipe x Thread x Pipe | A | B | C | D | Weight (g) |
| ETF025015 | 25 x 1/2 x 25 | 97.88 | 52.5 | 41.25 | 26.75 | 108 |
| ETF032015 | 32 x 1/2 x 32 | 118.25 | 63.75 | 51.75 | 34 | 192 |
| ETF032020 | 32 x 3/4 x 32 | 118.25 | 63.75 | 51.75 | 34 | 192 |
| Code | Pipe x Thread x Pipe | A | B | C | D | Weight (g) |
| ETF025015 | 25 x 1/2 x 25 | 97.88 | 52.5 | 41.25 | 26.75 | 108 |
| ETF032015 | 32 x 1/2 x 32 | 118.25 | 63.75 | 51.75 | 34 | 192 |
| ETF032020 | 32 x 3/4 x 32 | 118.25 | 63.75 | 51.75 | 34 | 192 |
