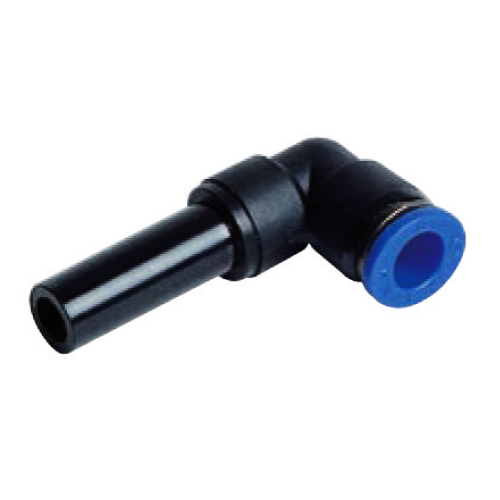

Elbow Plug-In Reducer
Composite Tube-to-Tube Elbow Plug-In Fitting
Plug-in reducer elbow, metric tube.
- One-touch joints are use in pneumatic piping. Easy to connect/disconnect tube with one touch.
- Can be applied and removed easily in confined spaces
- Can be used under a wide range of pressures
Specifications
| Tubing A | 8mm |
| Tubing B | 6mm |
| Material | Composite |
| Fitting Shape | Elbow |
| Fluid | Air (no other gases or liquids) |
| Working Pressure Range | 0 – 284 Psi | 0 ~ 20 Kgf/c㎡(0~1960kPa) |
| Negative Pressure | -29.5″ Hg | -750mmHg(10Torr) |
| Temperature Range | 0 ~ 80°C |
| Application Tube Material | Polyurethane and Nylon |
