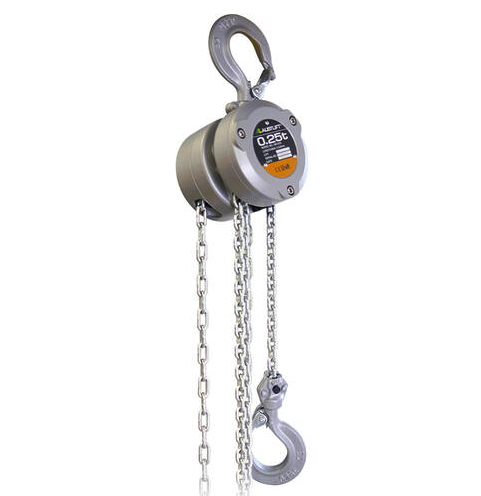

Dynoblock 360°
With a compacted design, enclosed body and aluminium construction, the Austlift Dynoblock 360° can be used in the home, factory, field construction, agriculture, warehouse and for small equipment installation purposes. It is also widely used in the chemical and marine industries where anti-corrosion equipment is required.
- The unit allows the use to position themselves at any angle around the unit (360°)
- More than 50% lighter than standard chain blocks
- Double pawl brake system for increased safety
- Heat-treated flexible hooks if overloaded
- Galvanised load chain and hand chain for anti-corrosion
- Water-resistant

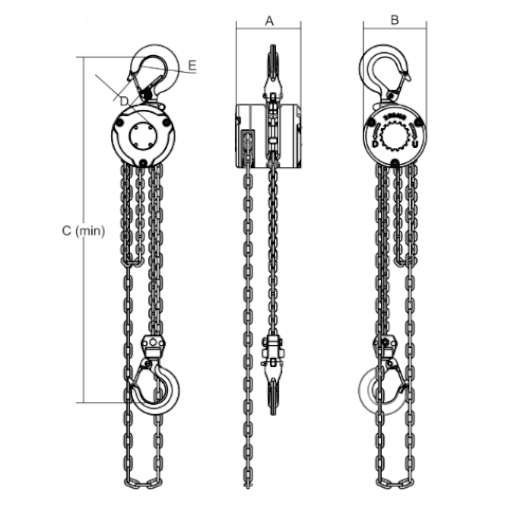

| CODE | WLL | NW. | LIFT HEIGHT | TEST LOAD | PULLING EFFORT | CHAIN SIZE | NO. OF CHAIN FALLS | DIMENSIONS (mm) | ADDED LIFT HEIGHT WEIGHT/M | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T | kg | m | kN | N | mm | A | B | C (min) | D | E | kg | ||
| 117025 | 0.25 | 2.58 | 2.5 | 3.75 | 160 | 3.2 | 1 | 88 | 84 | 245 | 21 | 32 | 0.62 |
| 117050 | 0.5 | 3.96 | 2.5 | 7.5 | 200 | 4 | 1 | 101 | 104 | 285 | 22 | 35 | 0.75 |
| 117100 | 1.0 | 9.5 | 3.0 | 15 | 300 | 4 | 1 | 138 | 140 | 370 | 27 | 38 | 1.6 |
