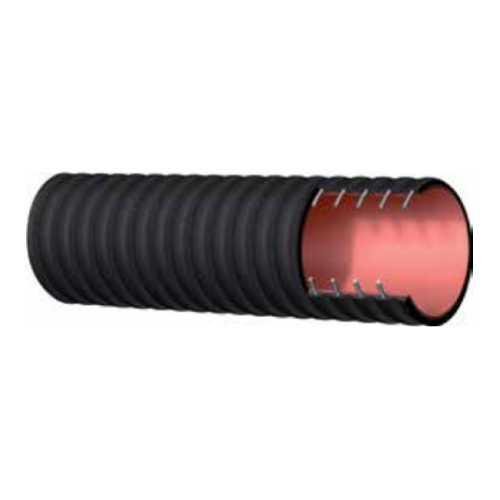

Drill Cuttings Suction 5 Bar (75 psi) Corrugated – Alfagomma 714HA
Tube: Red NR – abrasion resistant.
Reinforcement: High tensile textile cords with embedded steel helix wire – antistatic wire.
Cover: Black conductive SBR/NR – abrasion and ozone resistant.
Application: Bulk material suction and delivery.
Specially designed for drill cutting suction in mobile drilling rigs.
Corrugated construction for maximum flexibility.
Constant Operation: -30°C +80°C (-22°F +176°F)
| Internal Diameter | Outer Diameter | Working Pressure | Burst Pressure | Bend Radius | Vacuum | Weight | ||||||
| ID mm | ID inch | OD mm | OD Inch | bar | psi | bar | psi | mm | in | % | kg/m | lb/ft |
| 51 | 2″ | 63 | 2.48 | 5 | 75 | 15 | 225 | 127 | 5.00 | 100 | 1.19 | 0.80 |
| 63 | 2 1/2″ | 77 | 3.03 | 5 | 75 | 15 | 225 | 157 | 6.18 | 90 | 1.86 | 1.26 |
| 76 | 3″ | 92 | 3.62 | 5 | 75 | 15 | 225 | 190 | 7.48 | 90 | 2.56 | 1.73 |
| 102 | 4″ | 119 | 4.69 | 5 | 75 | 15 | 225 | 255 | 10.04 | 90 | 3.58 | 2.41 |
| 115 | 4 1/2″ | 129 | 5.08 | 5 | 75 | 15 | 225 | 287 | 11.30 | 90 | 4.07 | 2.74 |
| 127 | 5″ | 144 | 5.55 | 5 | 75 | 15 | 225 | 318 | 12.52 | 80 | 4.71 | 3.17 |
| 152 | 6″ | 166 | 6.54 | 5 | 75 | 15 | 225 | 380 | 14.96 | 80 | 5.58 | 3.76 |
