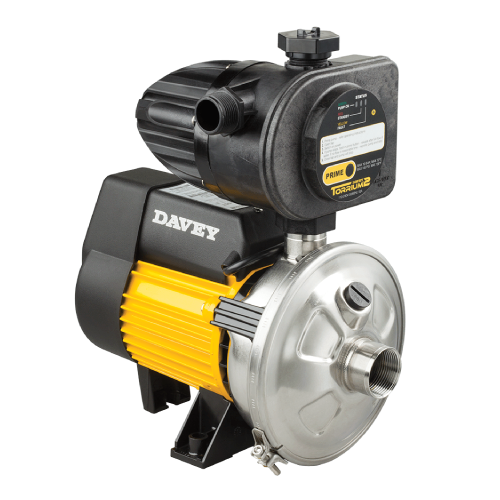

Davey Horizontal Pressure Pump HP
Ideal for pumping clean, non-volatile liquids without fibres or solids in such applications as household water supply, irrigation, water transfer, washing systems and pressure boosting.
| Model | Max Pressure | Max Capacity | Max Head | Max Suction Head | Max Ambient Temp | Max Water Temp | Min Water Temp | Motor | Net Weight |
| HP45-05T | 450 kPa | 140 l/m | 33m | 6m | 50°C | 50°C | 1°C | 220-240v, single phase 2850rpm | 9kg |
- Easy non-tradesmen installation and assembly, especially where space is at a premium
- Non-intrusive operation for consumer enjoyment
- Corrosion resistant materials to ensure the water is as good coming out as it was going into the system.
- Ability to use the HP pressure system on a variety of water qualities
- Pump features a reliable twin stage impeller design
- All stainless steel construction for reliability and the ability to pump hot water up to 50°C
- Carbon/ceramic mechanical seal for reliable pump operation
- TEFC motor constructed from corrosion resistant materials
- IP55 international protection rating for a high level of resistance to dust and liquid entry
- Class F insulation
- Higher than normal 50°C ambient temperature rating for longer life and improved tolerance to voltage variations for peace of mind, even on the hottest days.
- Protected against both high operating temperature and high current draw by a built-in, automatically re-setting, thermal overload
- Permanently split P2 ‘fail safe’ capacitor design
- Motor and pump are designed for frequent starts
