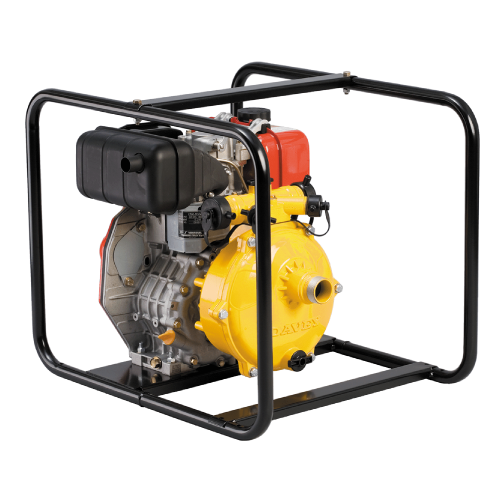

Davey Firefighter (Diesel) 5170Y
| Inlet | Outlet | Total Head | Engine | Max Flow | Self Primes to | Net Weight | Carton Dimensions (mm) LxWxH |
| 1 1/2″ M | 2x 1″ M 2x 1 1/2″ M |
92m | L70N5 Electric start |
540 l/m | 7m | 61kg | 675 x 520 x 545 |
- Driven by a Yanmar L70 diesel engine
- Patented clamped impeller design to enable longer impeller life and easier disassembly in case of blockage
- Heavy duty sand cast impeller
- Thrust balanced impeller design to extend engine life
- Pump casing, diffusers and impellers manufactured from quality corrosion resistant marine grade aluminium for long life.
- 4 way discharge port for L70 provides easy installation with a choice of plumbing sizes
- Epoxy coated pump casing, exterior and interior, for added corrosion resistance.
- Patented floating impeller neckrings front and back. The front neckring helps improve pumping efficiency, the back neckring helps extend seal life and dramatically reduce engine wear.
- Large priming and drain port with bayonet fit plugs. Plugs have a safety retention system and are available with 1/4″ tapping to accept pressure gauges or drain cocks.
- All engines feature cast iron cylinder bore for long life.
- All models have electric starter (battery, battery mount and leads required) and recoil starter fitted ensuring a choice of starting methods, even if the battery is flat or removed.
- Viton seal and oring kit available for herbicide/insecticide spraying
- Attractive baked enamel roll frame with anti-vibration mounts for ease of transportation and installation
- Electric Start battery requirements: Minimum 12 volt battery required:- L70: 24-36AH
